The ball D has a mass of 20 kg. If a force of F=100 N is applied horizontally to the ring at A

The ball D has a mass of 20 kg. If a force of F=100 N is...

Key Concepts

Static Equilibrium

This concept is fundamental when analyzing structures or systems under force where all forces and moments balance. Static equilibrium means that the sum of all forces in any direction and the sum of all moments (or torques) about any pivot or point must be zero. This principle is used to solve for unknown dimensions or forces in a system such that there is no net acceleration or rotational motion.

Moment (Torque) Analysis

Moment or torque analysis involves calculating the turning effects produced by forces acting at a distance from a pivot point. It is essential in problems where a force must be counterbalanced by another force, often by adjusting distances or lever arms within the system. Understanding how the force’s moment arm changes with geometry is crucial when designing systems that require precise balance conditions.

Force Decomposition

Force decomposition involves breaking a force into its components, typically along mutually perpendicular directions, to simplify the analysis of how different forces interact. This approach is important in mechanical systems where forces act at angles, enabling the separate analysis of horizontal and vertical effects and ensuring that the conditions for equilibrium are met in each coordinate direction.

Geometric Constraints in Mechanical Systems

In many mechanical problems, the geometry of the system (lengths, angles, distances) plays a critical role in the balance of forces and moments. Adjusting dimensions can be used to achieve desired conditions, such as nullifying unwanted forces. Understanding and applying the geometric relationships and constraints are key to designing systems where specific force interactions, like tension in cables, can be controlled or eliminated.

Transcript

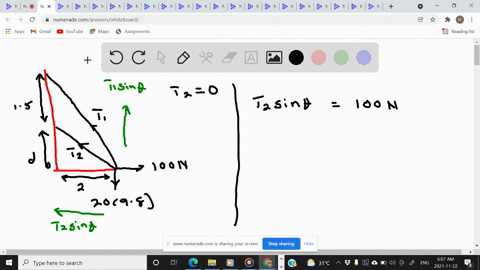

00:01 Hello everyone this problem is based on concept of forces in equilibrium and for forces at a point to be in equilibrium submission of your total force or resultant force at that point which is vector addition of all forces applied at that point must be zero now we are discussing the question given in this question is it is given wall d, this is point b, this is given point a, this is given point b and this is given c.

01:03 So mass of the wall d is given 20 kg.

01:10 A force of 100 newton is applied here in the horizontal direction on the ring.

01:18 We have to calculate d the largest value so that at equilibrium force of the on the card ac must be 0.

01:46 This is the condition given.

01:49 So there will be a force on the card ab only.

01:54 So this is the force on the card ab.

01:58 Let us see here.

02:00 This distance is d.

02:02 This is 2.

02:04 So we can write this length ab.

02:07 Av can be written as square root of 2 kai square that is 4 plus 1 .5 plus d.

02:19 Meter pole square the weight here m into g mass of the wall is given 209 .81 meter per second square so it will be 196 .2 newton now we have to resolve the this is your y -axis this is your x -axis so we have to apply the condition of equilibrium submission of course along x -axis and y -axis to be for ac is given zero.

02:58 Remember it this condition in a mind.

03:01 So for equilibrium, summation of all forces along x -axis must be zero.

03:18 So from here you can write 100 minus force on a .v...
