The ball is truncated at its ends and is used to support the...

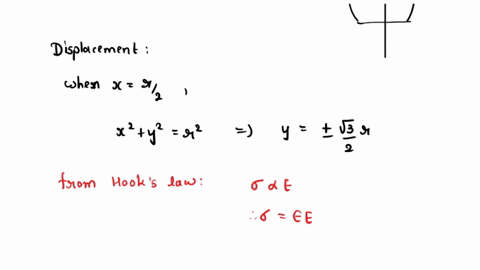

The ball is truncated at its ends and is used to support the bearing load $\mathbf{P}$. If the modulus of elasticity for the material is $E,$ determine the decrease in the ball's height when the load is applied.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Elastic Deformation

Elastic deformation occurs when a material changes shape due to an applied load but returns to its original shape once the load is removed. This behavior is governed by the material’s intrinsic properties and is the basis for analyzing how structures respond under load within the elastic limit.

Modulus of Elasticity (Young’s Modulus)

The modulus of elasticity is a fundamental property that measures a material's resistance to elastic deformation under load. It establishes the ratio of stress to strain in the linear portion of the stress-strain curve, which is essential in calculating dimensional changes when forces are applied.

Compressive Loading

Compressive loading refers to forces that push or squeeze an object, leading to a reduction in one or more dimensions. Understanding how materials respond to such loads is crucial for predicting deformations like height reduction in structural elements.

Stress-Strain Relationship

The stress-strain relationship describes how materials deform under applied forces, with stress defined as force per unit area and strain as the relative deformation. This relationship, often linear for elastic materials, is central to determining how much a structure will compress under a given load.
