Problem 62 Hard Difficulty

The base of $ S $ is a circular disk with radius $ r $. Parallel cross-sections perpendicular to the base are isosceles triangles with height $ h $ and unequal side in the base.
(a) Set up an integral for the volume of $ S $.
(b) By interpreting the integral as an area, find the volume of $ S $.

Answer

a) $V=2 h \int_{0}^{r} \sqrt{r^{2}-x^{2}} d x$
b) $V=\frac{1}{2} \pi r^{2} h$

Top Calculus 2 / BC Educators

Watch More Solved Questions in Chapter 6

Problem 1

Problem 2

Problem 3

Problem 4

Problem 5

Problem 6

Problem 7

Problem 8

Problem 9

Problem 10

Problem 11

Problem 12

Problem 13

Problem 14

Problem 15

Problem 16

Problem 17

Problem 18

Problem 19

Problem 20

Problem 21

Problem 22

Problem 23

Problem 24

Problem 25

Problem 26

Problem 27

Problem 28

Problem 29

Problem 30

Problem 31

Problem 32

Problem 33

Problem 34

Problem 35

Problem 36

Problem 37

Problem 38

Problem 39

Problem 40

Problem 41

Problem 42

Problem 43

Problem 44

Problem 45

Problem 46

Problem 47

Problem 48

Problem 49

Problem 50

Problem 51

Problem 52

Problem 53

Problem 54

Problem 55

Problem 56

Problem 57

Problem 58

Problem 59

Problem 60

Problem 61

Problem 62

Problem 63

Problem 64

Problem 65

Problem 66

Problem 67

Problem 68

Problem 69

Problem 70

Problem 71

Problem 72

Video Transcript

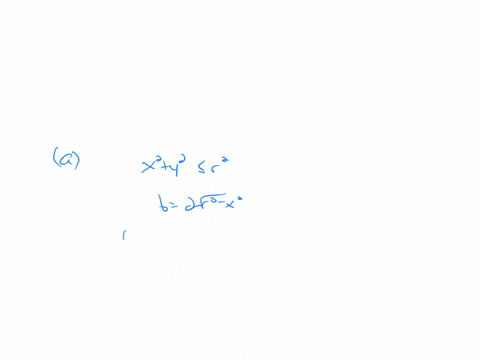

So for this problem, we have a circle with radius R, and it's centered at the origin. So we have is X squared, plus y squared equals r squared. Um, and we solve for y and we see that y equals plus or minus the square root of R squared minus X squared. So we know that the top half will be the positive square root. Um, and the bottom half will be the negative square root. So the base that we have is two times r squared, minus x squared, um, and that will give us the whole base length of RSO sleeves triangle, Then the height is the same for every triangle. So the area of one cross section is going to be FX equal to one half our base, which is to route R squared minus X squared. Times are height, which is going to equal our height, times the square root. Hi, because the tubes will cancel. So just high times square r squared my sex work. Then we know the circle intersects at the X. The X axis at X equals negative. R and X equals positive are so that's how we're going to integrate we can pull out the H, and we also know that it's symmetric. So rather than going from negative, are are we can just go from zero to our and multiply it by two. So our volume is going to equal two times h times the interval from zero to our of the R squared minus X squared G x then for part B. Um, what we find is using this. We can take the we can square both sides. We get our equation of a circle again. Um so since Y equals the square root of X r squared minus X squared, that's our upper half of the circle of radius R centered at the origin. So the way that we can write this now is going to be the volume once again, up to age, we have that same thing. But that's actually gonna end up equaling two h times. One fourth of pi r squared. So then the final answer will be one half pi r squared H and we were able to do this by replacing the integral with the area of a circle which we know to be pi r squared. And then we multiply that by 1/4. Since we have, um, half of the half circle
