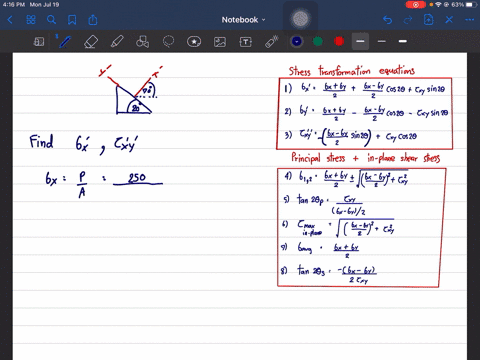

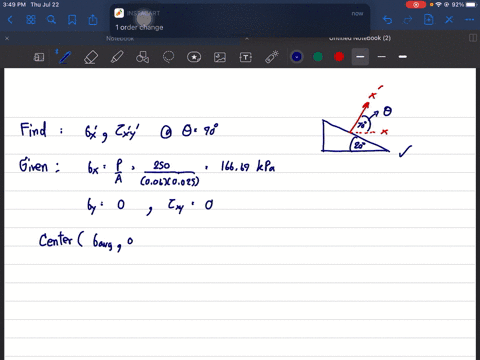

The board is subjected to a tensile force of 200 lb. Determine the average normal and average shear stress in the wood fibers, which are oriented along plane $a-a$ at $20^{\circ}$ with the axis of the board.

Key Concepts

Fiber Orientation Effects

Fiber orientation, as observed in materials like wood, plays a crucial role in determining how stresses are distributed throughout the material. When fibers are oriented at an angle to the direction of loading, the normal and shear stress components on planes aligned with the fibers differ significantly from those in the principal material directions, affecting the overall mechanical performance.

Tensile Loading

Tensile loading involves applying a force that pulls or stretches a material. In mechanical analysis, this type of loading is critical because it establishes the primary state of stress in the structure, which then must be resolved into various components to analyze the material’s response.

Normal Stress

Normal stress is the component of stress acting perpendicular to a given surface or cross-sectional area. It represents the load distribution over an area and is essential for assessing material strength and potential failure under tensile or compressive forces.

Shear Stress

Shear stress is the force component acting parallel to the surface or cross-sectional area, leading to a sliding or distortion action within the material. This stress is particularly significant when evaluating how materials might deform or fail due to the relative motion between different layers.

Stress Transformation

Stress transformation is the method used to derive the stresses acting on an arbitrary plane, given the known stresses in the principal directions. By applying trigonometric relationships, one can resolve an applied force into its normal and shear components on an inclined plane, which is critical in analyzing stresses in structures where the plane of interest is oriented at an angle to the principal axis.
