The board is used to hold the end of a four-way lug wrench...

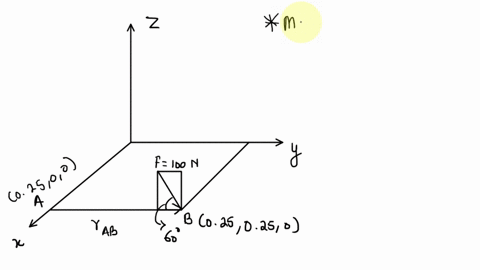

The board is used to hold the end of a four-way lug wrench in position. If a torque of $30 \mathrm{N} \cdot \mathrm{m}$ about the $x$ axis is required to tighten the nut, determine the required magnitude of the force $\mathbf{F}$ that the man's foot must apply on the end of the wrench in order to turn it. Force $\mathbf{F}$ lies in a vertical plane.

Key Concepts

Torque

Torque is a measure of the tendency of a force to rotate an object about a pivot or axis. It quantifies how much a force acting on an object causes that object to rotate, and its magnitude depends on both the size of the force applied and the distance from the pivot point (the moment arm) to the line of action of the force.

Moment Arm

The moment arm is the perpendicular distance between the axis of rotation and the line along which the force acts. It plays a critical role in calculating torque because even a small force can produce a large torque if applied at a long moment arm, while a large force might produce little torque when applied close to the pivot.

Lever Mechanics

Lever mechanics involves understanding how forces act on a rigid bar or beam to produce rotational motion. The principle is based on the idea that the force applied at a longer distance from a pivot produces greater rotational effect compared to the same force applied closer to the pivot, which is fundamental in tools and machines that work on this principle.

Force Components and Direction

When forces are applied at an angle, only the component of the force that acts perpendicular to the moment arm contributes to the torque. Analyzing force components is essential in solving problems where forces are applied in specific planes, ensuring that calculations regarding torque accurately reflect the effective rotational force.
