The channel is made of unfinished concrete and has a downward slope of 0.003 . Determine the vol

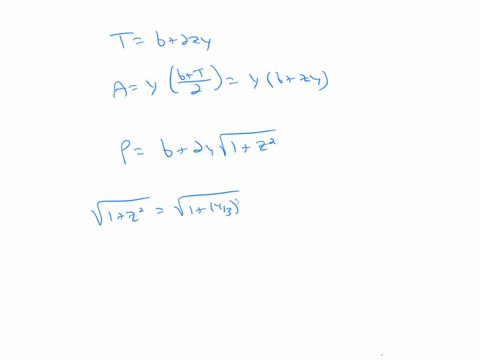

step 1 Let's compute the area, the weather perimeter, the hydraulic radius, and T. So A equals three ti

The channel is made of unfinished concrete and has a...

Key Concepts

Manning Equation

The Manning equation is an empirical formula used in hydraulic engineering to determine the volumetric flow rate in open channels based on the channel’s geometric characteristics, roughness, and slope. It relates these factors to estimate the discharge in channels with uniform and steady flow, making it an essential tool for designing and analyzing water conveyance systems.

Flow Regime Classification

Flow regime classification in open channels distinguishes between subcritical and supercritical flow. This categorization is based on the balance between gravitational and inertial forces, where subcritical flow (often indicated by a Froude number less than 1) is dominated by gravity, and supercritical flow (Froude number greater than 1) is dominated by inertia. Understanding the flow regime is critical for analyzing hydraulic behavior and ensuring appropriate design and safety measures in channel systems.

Froude Number

The Froude number is a dimensionless parameter that compares the flow inertia to the gravitational force in open channel flows. It is calculated by dividing the flow velocity by the square root of the product of gravitational acceleration and a characteristic length (typically the flow depth). This value helps determine whether the flow is subcritical, critical, or supercritical, and plays a pivotal role in understanding the dynamic behavior of the flow in open channels.
