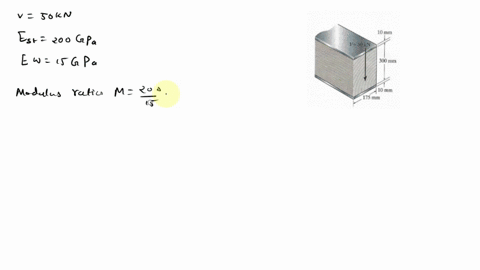

The composite beam is constructed from wood and reinforced with a steel strap. Use the method of Sec. 6.6 and calculate the maximum shear stress in the beam when it is subjected to a shear of $V=50 \mathrm{kN}$. Take $E_{\mathrm{st}}=200 \mathrm{GPa}$ $E_{\mathrm{w}}=15 \mathrm{GPa}$

Key Concepts

Composite Beam Behavior

Composite beams are structural elements made by combining two or more materials, each with distinct mechanical properties, to work together as a single unit under load. In such systems, the materials share stresses and strains based on their stiffness, allowing for optimized performance and material efficiency.

Transformed Section Method

The transformed section method is a technique used to analyze composite beams by converting the cross-sectional area of one material into an equivalent area of another material. This transformation, based on the ratio of the moduli of elasticity, enables the complex composite section to be analyzed as if it were homogeneous, simplifying the calculation of stresses and moments.

Modular Ratio

The modular ratio is the ratio of the modulus of elasticity of one material to that of another. It is used in the transformed section method to relate the stiffness of different materials in a composite beam. This ratio is critical for accurately converting the cross-sectional areas of different materials to a common base to ensure proper calculation of stress distributions.

Shear Stress Distribution in Composite Beams

Shear stress distribution in composite beams involves analyzing how shear forces are shared between the different materials based on their individual stiffnesses and positions within the cross-section. This concept is essential for determining the maximum shear stress in the beam, ensuring that all components are adequately designed to resist applied loads.
