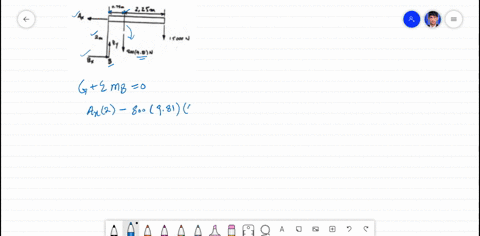

The dimensions of a jib crane, which is manufactured by the Basick Co., are given in the figure. The crane has a mass of $800 \mathrm{~kg}$ and a center of mass at $G$. The bearing at $A$ is a journal bearing and can support a horizontal force, whereas the bearing at $B$ is a thrust bearing that supports both horizontal and vertical components. Determine the maximum load $F$ that can be suspended from its end if the selected bearings at $A$ and $B$ can sustain a maximum resultant load of $24 \mathrm{kN}$ and $34 \mathrm{kN},$ respectively.

Key Concepts

Static Equilibrium

Static equilibrium is the fundamental condition in mechanics where a system is at rest because the sum of all forces and moments acting on it is zero. This concept is essential for analyzing structures such as cranes, as it provides the basis for setting up equations that ensure the system does not undergo translational or rotational motion under applied loads.

Free-Body Diagrams

A free-body diagram is a graphical tool used to isolate an object or a section of a structure and illustrate all the external forces and moments acting on it. Free-body diagrams simplify the process of writing equilibrium equations by clearly showing the applied loads, reaction forces, and the points at which these forces act, which is crucial in solving for unknown forces.

Reaction Forces

Reaction forces are the forces exerted by supports, bearings, or other connections in a structure in response to applied loads. These forces ensure the equilibrium of the system and must be carefully calculated to ensure that they do not exceed the design or material limits of the supports or bearings.

Moment Equilibrium

Moment equilibrium involves ensuring that the sum of all moments (or torques) about any chosen pivot point equals zero. This principle is used to analyze how forces cause rotations and to determine the distribution of loads within a structure, such as a crane, where the distance from the load to the support influences the resulting moments.

Bearing Load Capacity

Bearing load capacity refers to the maximum force that a bearing can safely support without failing. In structural analysis, understanding the load capacities of different types of bearings is critical for ensuring that the reaction forces induced by applied loads remain within allowable limits, thereby preventing structural failure.

Center of Mass and Load Distribution

The center of mass is the point in a body or system where its mass is considered to be concentrated. In the analysis of structures like cranes, the location of the center of mass affects the distribution of weight and the resulting moments, influencing how applied loads are balanced and how reaction forces develop at the supports.
