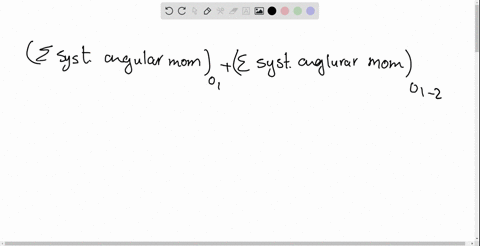

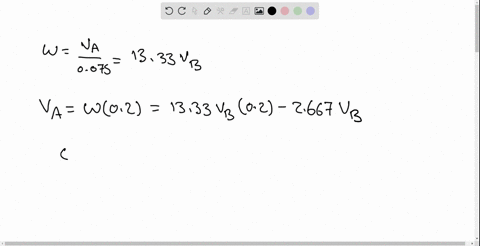

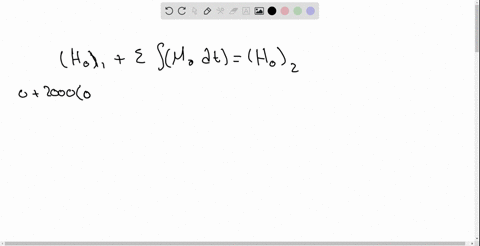

The double pulley consists of two wheels which are attached to one another and turn at the same rate. The pulley has a mass of $15 \mathrm{~kg}$ and a radius of gyration $k_{o}=110 \mathrm{~mm}$. If the block at $A$ has a mass of $40 \mathrm{~kg}$. determine the speed of the block in $3 \mathrm{~s}$ after a constant force $F=2 \mathrm{kN}$ is applied to the rope wrapped around the inner hub of the pulley. The block is originally at rest. Neglect the mass of the rope.

Key Concepts

Moment of Inertia

The moment of inertia is a measure of an object's resistance to changes in its rotational motion about an axis. It depends on both the total mass of the object and how that mass is distributed relative to the axis of rotation. The radius of gyration is used to simplify calculations by representing the distribution of mass as if it were concentrated at a specific distance from the axis.

Rotational Dynamics and Torque

Rotational dynamics involves the study of the forces and torques that cause rotational motion. Torque is the rotational equivalent of force and is calculated by multiplying the applied force by the perpendicular distance from the axis of rotation. Newton’s second law for rotation states that the net torque on an object is equal to the moment of inertia multiplied by the angular acceleration.

Newton's Second Law (Translational Dynamics)

Newton’s second law for translation states that the net force acting on an object is equal to the mass of the object multiplied by its linear acceleration. This principle governs the motion of objects along a straight line, and it is essential for understanding how applied forces cause changes in speed in systems involving both translation and rotation.

Relationship between Angular and Linear Acceleration

The relationship between angular acceleration and linear acceleration is given by the equation a = r * ?, where a is the linear acceleration, r is the radius, and ? is the angular acceleration. This connection is crucial in systems like pulleys, where rotational motion is directly converted into translational motion, allowing one to analyze the speed and displacement of connected masses.
