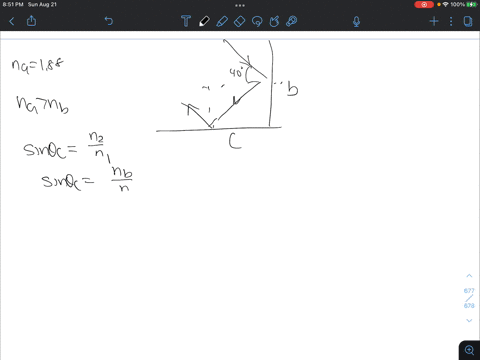

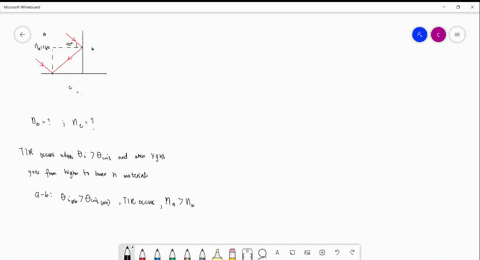

The drawing shows three materials, a, b, and c . A ray of...

The drawing shows three materials, $a, b,$ and $c .$ A ray of light strikes the $a-b$ interface at an angle that just barely exceeds its critical angle of $40.0^{\circ} .$ The reflected ray then strikes the $a-c$ interface at an angle of incidence that just barely exceeds its critical angle (which is not $40.0^{\circ}$ ). The index of refraction of material $a$ is $n_{a}=1.80 .$ Find the indices of refraction for the two other materials.

Key Concepts

Critical Angle

The critical angle is the angle of incidence in the denser medium above which total internal reflection occurs when light attempts to pass into a less dense medium. It is derived from Snell’s Law by setting the angle of refraction to 90 degrees, yielding the equation sin(theta_c) = n2/n1 for n1 > n2. This concept is key to situations where the propagation of light is confined within a medium, as only angles below the critical angle will result in refraction.

Total Internal Reflection

Total internal reflection is the phenomenon where all the light is reflected back into a medium rather than refracted into a second, less dense medium. This occurs when the incident angle exceeds the critical angle for the interface. Understanding this concept is essential in optical systems and practical devices, as it explains the behavior of light at interfaces where transmission is not possible.

Index of Refraction

The index of refraction is a measure of how much a light ray bends, or refracts, when entering a material. It is defined as the ratio of the speed of light in a vacuum to the speed of light in the material, and it determines the optical density of the medium. This concept is fundamental in understanding how light propagates through different media and is directly used in formulas relating angles of incidence, refraction, and reflection at interfaces.

Snell's Law

Snell’s Law relates the angles of incidence and refraction of a light ray when it passes from one medium to another with different refractive indices. The law is expressed as n1*sin(theta1) = n2*sin(theta2), where n1 and n2 are the refractive indices of the first and second media respectively, and theta1 and theta2 are the corresponding angles. This principle is critical for analyzing how light rays change direction at material interfaces.
