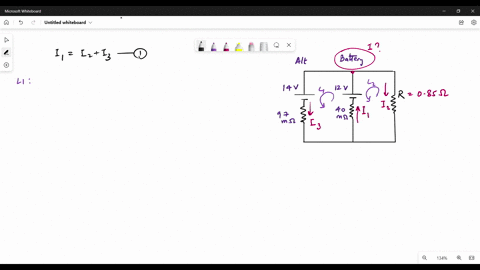

The figure shows a simplified circuit diagram for an automobile. The equivalent resistor $R$ represents the total electrical load due to spark plugs, lights, radio, fans, starter, rear window defroster, and the like in parallel. If $R=0.850 \Omega,$ find the current in each branch. What is the terminal voltage of the battery? Is the battery charging or discharging?

Key Concepts

Battery Charging and Discharging

Understanding battery charging versus discharging involves analyzing whether the battery is accepting current (charging) or providing current (discharging). This is determined by the relation between the battery’s terminal voltage and the external circuitry. If the terminal voltage is lower than the open-circuit voltage while current is being drawn, the battery is typically discharging; conversely, if the conditions cause a reverse current, the battery may be in a charging state.

Battery Internal Resistance

Battery internal resistance is the inherent resistance present within a battery that causes a voltage drop when current flows. This internal resistance affects the terminal voltage, particularly under load conditions, and is important when determining the battery's performance, including whether it is charging or discharging during operation.

Terminal Voltage and Its Determination

The terminal voltage of a battery is the voltage available at its output terminals under load and is lower than the open-circuit voltage due to the voltage drop across the battery’s internal resistance. Calculating the terminal voltage involves accounting for both the ideal battery voltage and the drop caused by the internal resistance when current flows.

Ohm’s Law

Ohm’s Law is fundamental to circuit analysis and states that the current through a resistor is directly proportional to the voltage across it and inversely proportional to its resistance (I = V/R). It allows us to determine the current flowing in each branch of a circuit when the voltage and resistance are known, making it essential for calculating the load currents in electrical systems.

Parallel Circuits and Current Division

In parallel circuits, multiple electrical loads are connected such that they share the same voltage across them, but the total current supplied by the source is divided among the branches. The current division rule helps to determine the specific current through each parallel branch based on its resistance relative to the equivalent resistance of the network, which is central to analyzing the electrical load in complex circuits.
