The first accurate estimate of cell membrane thickness used a capacitive technique, which determined the capacitance per unit area of cell membrane in a macroscopic suspension of cells; the result was about $1 \mu \mathrm{F} / \mathrm{cm}^{2} .$ Assuming a dielectric constant of about 3 for the membrane, find the membrane's thickness. (Note: Your answer is the thickness of the bipolar lipid layer alone, and is lower by a factor of about 3 than values based on X-ray techniques.)

The first accurate estimate of cell membrane thickness used a capacitive technique, which determined the capacitance per unit area of cell membrane in a macroscopic suspension of cells; the result was about $1 \mu \mathrm{F} / \mathrm{cm}^{2} .$ Assuming a dielectric constant of about 3 for the membrane, find the membrane's thickness. (Note:
Your answer is the thickness of the bipolar lipid layer alone, and is lower by a factor of about 3 than values based on X-ray techniques.)

Key Concepts

Lipid Bilayer Structure

The lipid bilayer forms the fundamental structure of cell membranes, consisting of two layers of lipid molecules. Its properties, including thickness and dielectric behavior, are essential to the membrane's function. The ability to estimate its thickness using electrical measurements highlights the interplay between biological structure and physical principles.

Capacitance per Unit Area

This concept refers to the capacitance normalized by the surface area of a capacitor. It allows for the determination of physical properties, such as the thickness of a dielectric layer, by relating macroscopic electrical measurements to microscopic structural features. In cell membrane studies, it's a key measurement for inferring the size of the lipid bilayer.

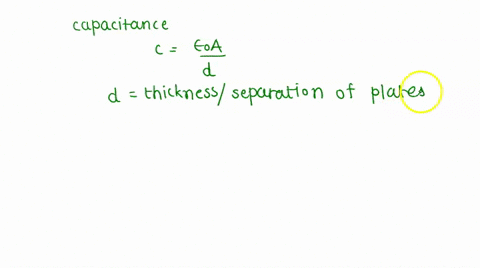

Parallel Plate Capacitor Model

This concept involves modeling a system as two parallel conductive plates separated by a dielectric material. The capacitance is given by the expression C = (?r * ?0 * A) / d, where A is the plate area and d is the separation (or thickness of the dielectric). In the context of cell membranes, this model is used to relate measurable electrical properties to the physical thickness of the lipid bilayer.

Dielectric Constant

The dielectric constant is a measure of a material's ability to store electrical energy within an electric field relative to vacuum. It influences the capacitance of a system by scaling the permittivity of free space. For biological membranes, knowing the dielectric constant is essential for accurately connecting capacitance measurements to the physical dimensions of the membrane.

Permittivity of Free Space

Permittivity of free space, denoted as ?0, is a fundamental physical constant that appears in the equations governing electric fields and capacitance. It serves as the baseline level of capacitance, and when combined with the dielectric constant of a material, it helps determine the overall capacitance of systems such as cell membranes.
