The flywheel of a punching machine has a mass of 300 kg and...

The flywheel of a punching machine has a mass of 300 kg and a radius of gyration of 600 mm. Each punching operation requires 2500 J of work. (a) Knowing that the speed of the flywheel is 300 rpm just before a punching, determine the speed immediately after the punching. (b) If a constant 25-N?m couple is applied to the shaft of the flywheel, determine the number of revolutions executed before the speed is again 300 rpm.

Key Concepts

Rotational Kinetic Energy

Rotational kinetic energy is the energy stored in a rotating object, calculated using the formula (1/2) I ?², where I is the moment of inertia and ? is the angular velocity. This concept is central when analyzing how energy changes in systems with rotating components, especially when work is added or extracted during operations.

Moment of Inertia

The moment of inertia represents an object's resistance to changes in its rotation and depends on the mass distribution relative to the axis of rotation. It can be expressed using the radius of gyration (k) as I = m * k², making it essential for quantifying how mass influences the rotational dynamics of systems like flywheels.

Angular Velocity Conversion

Angular velocity conversion involves translating rotational speed from units such as revolutions per minute (rpm) to radians per second (rad/s), since 1 revolution equals 2? radians. This conversion is necessary for applying standard equations in rotational mechanics, such as those for rotational kinetic energy or angular momentum.

Work-Energy Principle in Rotational Systems

The work-energy principle in rotational dynamics states that the work done on or by a rotating system leads to a change in its rotational kinetic energy. This principle allows one to relate energy changes, such as the energy consumed during a mechanical operation, to corresponding changes in angular speed.

Torque and Angular Displacement Relationship

The relationship between torque and angular displacement is given by the work done by a torque, which is the product of torque and the angle (in radians) through which it is applied (W = ??). This concept is crucial when analyzing how a constant torque can alter the rotational motion of a system over a number of revolutions.

Transcript

00:01 Okay, so in this problem we have to find what is the angular speed of the flywheel after the punching.

00:11 And this is part a and part b.

00:14 We have to find the number of revolutions executed by the flywheel before the speed is again 300 rotations per minute.

00:26 So first of all, we know that in order to find the let's begin with part a.

00:33 So part a we have to find this speed after the punching.

00:38 We know according to the principle of work and energy that the kinetic energy before the punch plus the potential energy when we go from the initial before the punch when we go after the punch this transition energy needs to be equal the kinetic energy and after the punch.

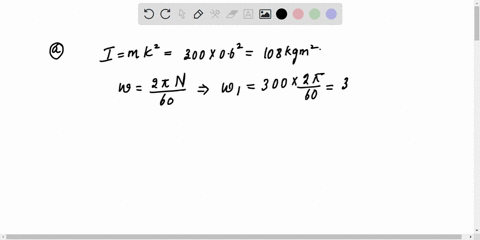

01:06 Okay, so what exactly is this? well, first of all, we need to find what is k1.

01:13 K1 is just, since this is rotating, this is the energy of rotation.

01:23 So half of the moment of inertia that multiplies the angular speed square.

01:30 Okay, and we know that the moment of inertia of this system is going to be equal, let's put here, half of m, radius square, omega -1 square.

01:48 Okay, so that's precisely what we have to find.

01:52 So let's put here the numerical values that we have.

01:56 So the mass is 300 kilograms.

02:01 The radius is just 0 .6 square.

02:08 Don't forget the half and here one half and that multiplies the angular speed the angular speed is just 300 rotations per minute.

02:21 So instead we put 300 rotations per minute let's put here 10 pi reds per second, okay? because rads per second is the international system of units that we are using.

02:39 Let's not use 300 rpm...
