The following discussion of Snell's Law of Refraction* (named after Willebrord Snell, 1580-1626) is needed for Light, sound, and other waves travel at different speeds, depending on the media (air, water, wood, and so on) through which they pass. Suppose that light travels from a point $A$ in one medium, where its speed is $v_1$, to a point $B$ in another medium, where its speed is $v_2$. Refer to the figure, where the angle $\theta_1$ is called the angle of incidence and the angle $\theta_2$ is the angle of refraction. Snell's Law, which can be proved using calculus, states that $$ \frac{\sin \theta_1}{\sin \theta_2}=\frac{v_1}{v_2} $$ The ratio $\frac{v_1}{v_2}$ is called the index of refraction. Some values are given in the table shown to the right. (FIGURE CAN'T COPY) The index of refraction of light in passing from a vacuum into dense flint glass is 1.66 . If the angle of incidence is $50^{\circ}$, determine the angle of refraction.

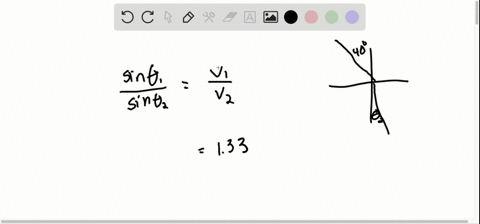

The following discussion of Snell's Law of Refraction* (named after Willebrord Snell, 1580-1626) is needed for Light, sound, and other waves travel at different speeds, depending on the media (air, water, wood, and so on) through which they pass. Suppose that light travels from a point $A$ in one medium, where its speed is $v_1$, to a point $B$ in another medium, where its speed is $v_2$. Refer to the figure, where the angle $\theta_1$ is called the angle of incidence and the angle $\theta_2$ is the angle of refraction. Snell's Law, which can be proved using calculus, states that
$$
\frac{\sin \theta_1}{\sin \theta_2}=\frac{v_1}{v_2}
$$
The ratio $\frac{v_1}{v_2}$ is called the index of refraction. Some values are given in the table shown to the right.
(FIGURE CAN'T COPY)

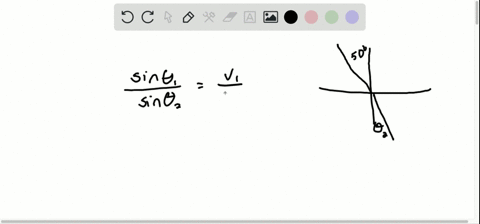

The index of refraction of light in passing from a vacuum into dense flint glass is 1.66 . If the angle of incidence is $50^{\circ}$, determine the angle of refraction.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Index of Refraction

The index of refraction is defined as the ratio of the speed of light in one medium to its speed in another medium, typically from a vacuum to the medium in question. It is a crucial concept in optics because it quantifies how much the light slows down in a medium and directly influences the bending or refraction of the light wave when it encounters a boundary.

Snell's Law

Snell's Law is a fundamental principle in optics that relates the angles of incidence and refraction when a wave passes between media with different propagation speeds. It provides a mathematical relationship between the sine of the incident angle and the sine of the refracted angle, proportional to the speeds of the wave in the respective media, thereby explaining how light bends at an interface.

Angles of Incidence and Refraction

The angle of incidence is the angle at which the incoming light or wave strikes the boundary between two media, measured from the normal (a line perpendicular) to the surface. The angle of refraction is the angle at which the light continues within the second medium after crossing the interface. These angles are directly related through Snell's Law, highlighting the change in direction that occurs due to the difference in wave speed between the two media.
