The following equation represent progressive transverse waves $$ \begin{aligned} &z_{1}=A \cos (\omega t-k x) \\ &Z_{2}=A \cos (\omega t+k x) \end{aligned} $$ $z_{3}=A \cos (\omega t+k y)$ $z_{4}=A \cos (2 \omega t-2 k y)$ A stationary wave will be formed by superposing (a) $z_{1}$ and $z_{2}$ (b) $z_{1}$ and $z_{4}$ (c) $z_{2}$ and $z_{3}$ (d) $z_{3}$ and $z_{4}$

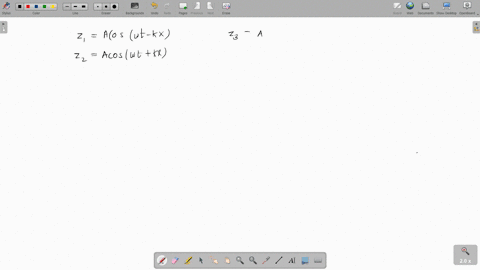

The following equation represent progressive transverse waves
$$
\begin{aligned}
&z_{1}=A \cos (\omega t-k x) \\
&Z_{2}=A \cos (\omega t+k x)
\end{aligned}
$$
$z_{3}=A \cos (\omega t+k y)$
$z_{4}=A \cos (2 \omega t-2 k y)$
A stationary wave will be formed by superposing
(a) $z_{1}$ and $z_{2}$
(b) $z_{1}$ and $z_{4}$
(c) $z_{2}$ and $z_{3}$
(d) $z_{3}$ and $z_{4}$

Key Concepts

Superposition Principle

The superposition principle states that when two or more waves overlap in a medium, the resulting wave displacement at any point is the algebraic sum of the displacements of the individual waves. This principle underlies the formation of patterns such as standing waves from the interference of two traveling waves.

Wave Interference

Wave interference is the process by which two or more waves combine to form a resultant wave. Depending on the phase difference between the waves, interference can be constructive, where amplitudes add up, or destructive, where amplitudes cancel out partially or completely. This concept is fundamental to understanding the formation of standing waves.

Progressive (Traveling) Waves

Progressive waves, also known as traveling waves, are disturbances that travel or propagate through a medium, transferring energy from one point to another without the permanent displacement of the medium. They are typically represented by functions such as cos(?t ± kx), where ? is the angular frequency, k is the wave number, and the ± indicates the direction of propagation.

Standing (Stationary) Waves

Standing waves are created when two progressive waves of identical amplitude, frequency, and wavelength travel in opposite directions and interfere with each other. This interference produces a pattern with fixed nodes (points of no motion) and antinodes (points of maximum motion), resulting in a stable, oscillating pattern that does not appear to travel through the medium.
