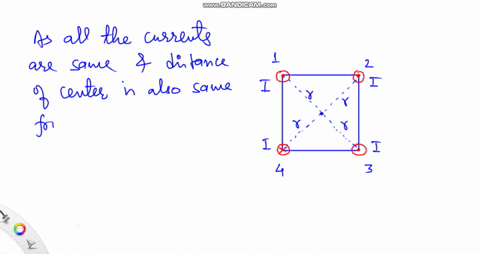

The four wires shown in FIGURE $2-54$ are long and straight, and they each carry a current of
the same magnitude, I. The currents in wires $1,2,$ and 3 are out of the page; the current in wire
4 is into the page. What is the direction of the magnetic force experienced by wire 2 ?

Key Concepts

Magnetic Force on a Current-Carrying Conductor (Lorentz Force)

When a current-carrying conductor is placed in a magnetic field, it experiences a force that is perpendicular to both the current direction and the magnetic field. This force, described by the Lorentz force law, results from the interaction of the magnetic field with the moving charges in the conductor, leading to motion or deflection of the wire.

Magnetic Field from a Current-Carrying Conductor

This concept describes how a moving charge in a wire creates a magnetic field that forms concentric circles around the wire. Laws like Ampère’s Law or the Biot–Savart Law quantify this field, which decreases with distance and is directional, thereby influencing nearby currents or magnetic materials.

Right-Hand Rule

The right-hand rule is a mnemonic used to determine the direction of the magnetic field around a current-carrying conductor or the direction of the force acting upon it. By aligning your thumb with the direction of the current, your fingers curl in the direction of the magnetic field lines, offering a straightforward method to visualize vector directions in electromagnetic contexts.

Superposition Principle in Magnetic Fields

In systems with multiple current-carrying wires, each wire contributes its own magnetic field. The net magnetic field at any point is determined by vectorially adding the individual fields from all the wires. This principle is crucial for analyzing the overall magnetic environment and its effect on the forces acting on each conductor.
