The frame of a tandem drum roller has a weight of 4000 lb excluding the two rollers. Each roller

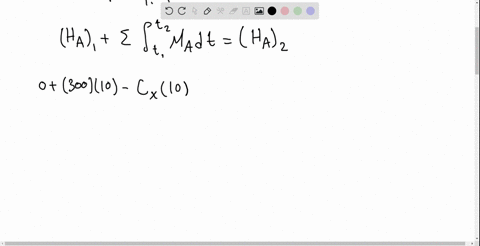

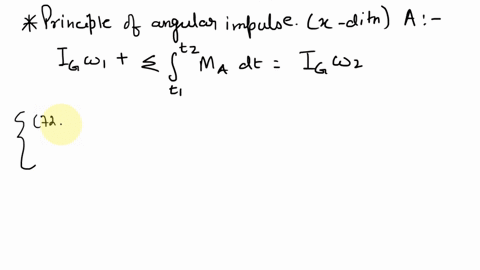

step 1 in this question the moment or the mass moment of inertia IC equals ID equals 1500 over 32 .2 ti

The frame of a tandem drum roller has a weight of 4000 lb...

The frame of a tandem drum roller has a weight of $4000 \mathrm{lb}$ excluding the two rollers. Each roller has a weight of $1500 \mathrm{lb}$ and a radius of gyration about its axle of $1.25 \mathrm{ft}$. If a torque of $M=300 \mathrm{lb} \cdot \mathrm{ft}$ is supplied to the rear roller $A$, determine the speed of the drum roller $10 \mathrm{~s}$ later, starting from rest.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Torque

Torque is a measure of the rotational force applied to an object around an axis. It plays a central role in rotational dynamics as it determines the angular acceleration of a body when combined with the body's moment of inertia.

Moment of Inertia

The moment of inertia quantifies an object's resistance to changes in its rotational state. It depends on both the mass of the object and its distribution relative to the axis of rotation, analogous to mass in linear motion.

Radius of Gyration

The radius of gyration is a conceptual distance that represents how far from the axis of rotation the mass of an object can be assumed to be concentrated to yield the same moment of inertia. It simplifies calculations and helps in understanding mass distribution effects.

Newton's Second Law for Rotation

Newton's Second Law for rotation relates the net applied torque on an object to its moment of inertia and the resulting angular acceleration. It forms the basis for analyzing rotational motion under applied forces.

Rotational Kinematics

Rotational kinematics deals with the relationships between angular displacement, angular velocity, and angular acceleration. It allows for the prediction of an object's state of rotational motion over time, especially when starting from rest or under constant angular acceleration.
