The fundamental frequency of an open organ pipe corresponds...

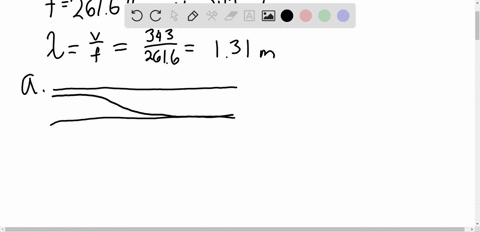

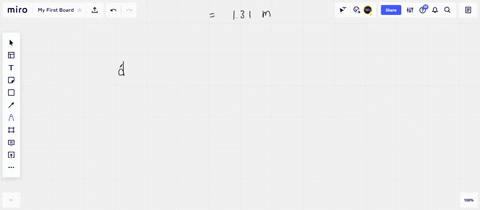

The fundamental frequency of an open organ pipe corresponds to middle $\mathrm{C}(261.6 \mathrm{Hz} \text { on the chromatic musical }$ scale). The third resonance of a closed organ pipe has the same frequency. What is the length of each pipe?

Key Concepts

Standing Waves

In both open and closed organ pipes, the sound is produced by standing waves, which result from the interference between waves traveling in opposite directions. This concept is central to understanding how resonant frequencies are established in pipes, as the conditions at the boundaries (open or closed ends) determine the pattern of nodes and antinodes formed along the length of the pipe.

Resonance in Open Pipes

Open pipes support standing waves that have antinodes at both ends. The simplest mode, or fundamental frequency, occurs when the length of the pipe equals half the wavelength of the sound wave. This relationship, expressed as f = v/(2L), is key in determining the physical dimensions of the pipe from a given frequency.

Resonance in Closed Pipes

Closed pipes have one closed end, where a node forms, and one open end, where an antinode forms. Due to this boundary condition, only odd numbered harmonics exist, and the fundamental frequency is given by f = v/(4L). In higher modes, the relationship adjusts to f_n = n(v/(4L)) for odd integers n, affecting the length and resonant frequency calculations.

Harmonics and Mode Selection

Harmonics refer to the integer multiples of the fundamental frequency that can resonate in a system. In open pipes, all harmonics are present, while in closed pipes only the odd harmonics appear due to the asymmetry imposed by the closed end. This concept is critical when matching resonant frequencies between systems with different boundary conditions, as seen when equating a mode from a closed pipe to the fundamental of an open pipe.
