The girl has a mass of 40 kg and center of mass at G If she...

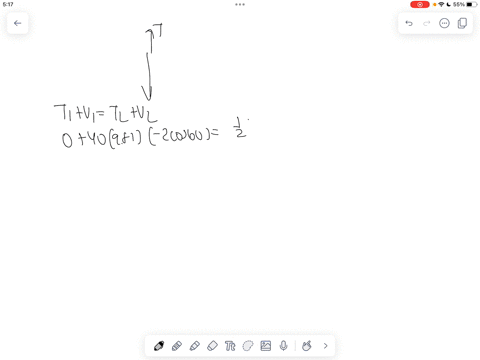

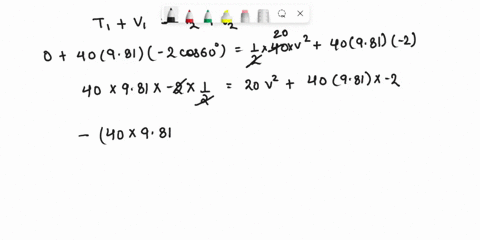

The girl has a mass of 40 kg and center of mass at $G$ If she is swinging to a maximum height defined by $\theta=60^{\circ}$ determine the force developed along each of the four supporting posts such as $A B$ at the instant $\theta=0^{\circ} .$ The swing is centrally located between the posts.

Key Concepts

Conservation of Energy

This concept involves equating the potential energy the girl has at the height of the swing to the kinetic energy at the lowest point. The energy lost by descending is converted into kinetic energy, allowing calculation of the velocity at the bottom, which is crucial for determining the dynamic forces acting on the supports.

Centripetal Force

At the bottom of the swing, the mass of the girl requires a centripetal force to keep her moving along a curved path. This force, which is proportional to the square of her velocity over the swing radius, adds to her weight to produce the total tension in the swing rope. Determining this force is essential to understand the dynamic loading on the supporting structure.

Free?Body Diagram Analysis

Drawing a free-body diagram is important to identify and separate the forces acting on the girl and the swing system. It involves representing gravitational forces, tension in the rope, and the centripetal forces acting on the mass, which then aids in setting up the force balance equations necessary for calculating the loads transmitted to the supporting posts.

Force Distribution in Structures

This concept deals with how the calculated forces (baring both static weight and dynamic additional loads) are shared by the supporting posts. When a load is centrally located among multiple supports, the overall force is divided among them. Understanding the distribution of forces is key to ensuring each supporting member is evaluated for its load capacity and overall structural integrity.
