The indexes of refraction for violet light (λ= 400 nm) and red light (λ= 700 nm) in diamond

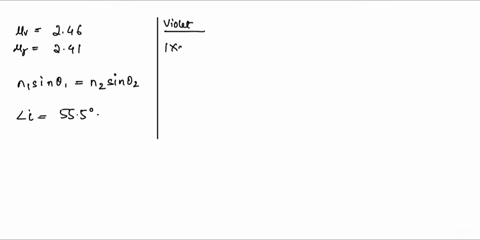

step 1 We have two wavelengths. One is for red and one is for a violet for a light inside a diamond. We

The indexes of refraction for violet light (λ= 400 nm) and...

The indexes of refraction for violet light $(\lambda = 400 \, \mathrm{nm})$ and red light $(\lambda = 700 \, \mathrm{nm})$ in diamond are 2.46 and 2.41, respectively. A ray of light traveling through air strikes the diamond surface at an angle of 53.5$^\circ$ to the normal. Calculate the angular separation between these two colors of light in the refracted ray.

Key Concepts

Refraction

Refraction is the bending of light as it passes from one medium to another due to a change in its speed. This phenomenon is governed by the relationship between the indices of refraction of the two media, leading to a change in the direction of the light ray at the interface.

Snell's Law

Snell's Law mathematically relates the angle of incidence and the angle of refraction through the equation n1 sin(?1) = n2 sin(?2), where n1 and n2 are the indices of refraction of the respective media. This law is fundamental for determining how much the light bends as it enters a new medium.

Index of Refraction

The index of refraction is a dimensionless number that indicates how much the speed of light is reduced inside a medium compared to its speed in a vacuum. It is crucial in understanding light propagation through different materials and is dependent on the wavelength of the light.

Dispersion

Dispersion occurs because the index of refraction varies with the wavelength of light, resulting in different wavelengths bending by different amounts when passing through a material. This leads to the separation of white light into its constituent colors.

Angular Separation

Angular separation refers to the difference in the angles at which different wavelengths (colors) are refracted when entering a medium. It is a direct consequence of dispersion, as varying refractive indices for different wavelengths cause the light to spread out at distinct angles.
