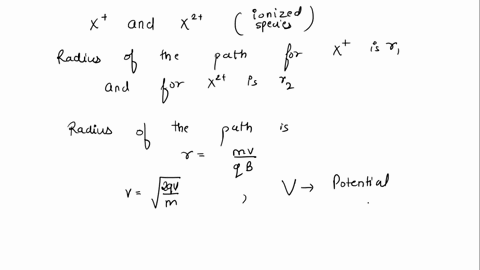

The ion source in a mass spectrometer produces both singly and doubly ionized species, $\mathrm{X}^{+}$ and $\mathrm{X}^{2+}$ . The difference in mass between these species is too small to be detected. Both species are accelerated through the same electric potential difference, and both experience the same magnetic ficld, which causes them to move on circular paths. The radius of the path for the species $X^{+}$ is $r_{1},$ while the radius for species $X^{2+}$ is $r_{2}$ . Find the ratio $r_{1} / r_{2}$ of the radii.

Key Concepts

Cyclotron Radius

The cyclotron radius is the radius of the circular path that a charged particle follows in a uniform magnetic field. It is determined by the balance between the magnetic Lorentz force and the inertia of the moving ion, expressed as the ratio of the ion's momentum (mass times velocity) to the product of its charge and the magnetic field strength. This concept is key for separating ions based on their mass-to-charge ratios in mass spectrometry.

Motion of Charged Particles in a Magnetic Field

When charged particles, such as ions, enter a magnetic field, they experience a Lorentz force that acts perpendicular to both their velocity and the magnetic field direction. This force makes the ions follow a curved, often circular, path. The radius of this curvature can be used to infer the mass-to-charge ratio of the ion.

Kinetic Energy to Velocity Relationship

The relationship between kinetic energy and velocity is critical in understanding how ions behave after acceleration. Since the kinetic energy imparted to an ion by an electric field is converted into motion, the resultant velocity is directly related to the square root of this energy. This relationship is used to compute the ion's speed, which influences the radius of its path in a magnetic field.

Mass Spectrometry

Mass spectrometry is an analytical technique used to separate and identify ions based on their mass-to-charge ratios. Ions are generated, accelerated through a potential difference, and then deflected by a magnetic field, with their paths depending on their properties. This method allows for the determination of the composition and structure of a substance.

Ion Acceleration

Ion acceleration refers to the process by which ions gain kinetic energy when passing through an electric potential difference. The kinetic energy acquired by each ion, which is proportional to the product of its charge and the accelerating voltage, determines its subsequent velocity. This concept is fundamental in predicting ion trajectories in a mass spectrometer.

Transcript

00:02 Okay, in this problem, we're told we have two particles that go through a mass spectrometer, enter a magnetic field, and travel in a circular path.

00:12 We have x1, which is a plus 1 ion, and we have x2, which is a plus 2 ion.

00:22 We're told that the magnetic field, the voltage, and we have that the, the voltage, and we have that the we are told the magnetic field of the voltage are the same in both cases.

00:39 So b and v are the same.

00:43 And we're told that the mass is so small that it is non -detectable.

00:47 So m is also going to be the same in both cases.

00:50 So these three terms are all constants.

00:53 And we want to find the ratio of r1 to r2.

01:05 Okay.

01:06 So now we need an equation that relates all of the.

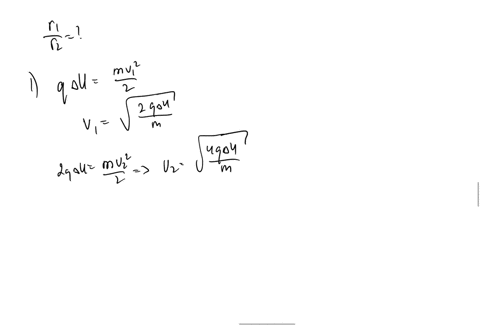

01:09 These variables or at this case constants and we do have one we have an equation that states that the mass for a spectrometer the mass of the particle is equal to the charge times the radius squared divided by two times the voltage times the magnetic field squared okay there's our equation we have everything we need so now we need to apply our knowledge of physics to solve this problem.

01:58 So we know that bv and m are all constants in both cases.

02:02 That being the case, i'm going to rearrange this equation so that those constants are all on one side, which those being constants, the only things that are not are q &r.

02:15 So we can move all this over to that side and leave the q and r on this side.

02:19 And i'm going to reverse it so we have the q &r.

02:22 And r on our left -hand side.

02:25 So we have r squared times q or q times r squared it doesn't matter what order you write those in.

02:34 That is a rule for multiplication.

02:37 So we have r times q, r squared times q is equal to we have the mass times 2v we'll write the constant outside to v divided by b squared.

03:00 And we also have a we get q on this side.

03:03 Okay.

03:08 So this is now in the form where we have all the constants on one side and all the variables on the other side.

03:15 And this is the same for both cases, which means that both cases have to be equal to each other.

03:22 If we take a look at just this part, these are all constants.

03:30 So we could equivalently write this as just one letter.

03:34 We could just call it c for a constant.

03:37 And then we have the same equation.

03:40 If we say that this is the first scenario, 1, m1, q1, r1, the same case happens for the second particle, r2, or for x2.

03:56 And it will be equal to the same c.

03:59 So we have r1, q1 is equal to c, and we'd have r2 squared.

04:09 Q2 is equal to the same c.

04:18 But c is this and it's equal to that.

04:20 So we could also rewrite this equation as r2q, forgot the sub q, or the sub 2, r2q2 is equal to r1 q1...
