The jet water ski has reached its maximum velocity of 70 km / h when operating in salt water. Th

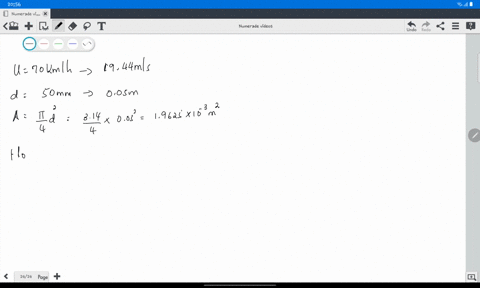

step 1 So we can say that inlet velocity or let's call that u is 70 km per hour. We can convert that to

The jet water ski has reached its maximum velocity of 70 km...

The jet water ski has reached its maximum velocity of $70 \mathrm{km} / \mathrm{h}$ when operating in salt water. The water intake is in the horizontal tunnel in the bottom of the hull, so the water enters the intake at the velocity of $70 \mathrm{km} / \mathrm{h}$ relative to the ski. The motorized pump discharges water from the horizontal exhaust nozzle of $50-\mathrm{mm}$ diameter at the rate of $0.082 \mathrm{m}^{3} / \mathrm{s}$ Calculate the resistance $R$ of the water to the hull at the operating speed.

Key Concepts

Conservation of Momentum

This principle states that in the absence of external forces, the momentum of a system remains constant. In fluid dynamics, it is used to equate the momentum imparted to a fluid (through processes like acceleration in a jet or pump) with the reaction forces experienced by the structure propelling the fluid. This concept is crucial for determining the forces acting on systems such as a jet water ski when water is accelerated and expelled.

Mass Flow Rate

Mass flow rate represents the amount of mass passing through a given area per unit time and is calculated as the product of the fluid's density and its volumetric flow rate. It is a key factor in analyzing how much momentum is transferred by the flowing fluid, which helps in computing the reactive forces that oppose the vehicle’s motion.

Momentum Flux

Momentum flux is the rate at which momentum is transferred through a surface and is determined by the product of the mass flow rate and the fluid velocity. In propulsion systems, it directly relates to the thrust or resistance forces generated by accelerating a fluid, making it essential for understanding the reactive force that the water exerts on the hull of a water ski.

Flow Continuity

Flow continuity is based on the principle that for an incompressible fluid, the volumetric flow rate remains constant along a streamline. This concept connects the fluid’s velocity and the cross-sectional area through which it moves, allowing one to compute changes in the velocity field when the geometry of the flow passage changes, which is essential for analyzing discharge conditions and resultant forces.
