The lengths of three telescopes are LA=455 mm, LB=615 mm, and LC=824 mm . The focal length of th

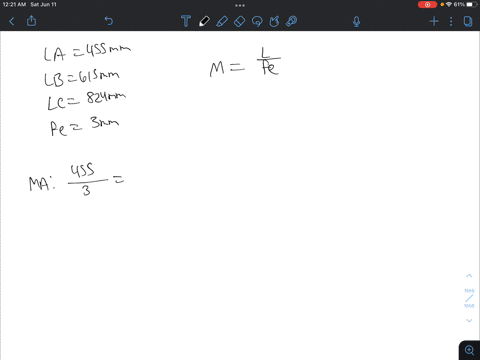

step 1 So we have three telescopes and the lengths of those three telescopes are 455 millimeters, 615 m

The lengths of three telescopes are LA=455 mm, LB=615 mm,...

The lengths of three telescopes are $L_{\mathrm{A}}=455 \mathrm{mm}, L_{\mathrm{B}}=615 \mathrm{mm},$ and $L_{C}=824 \mathrm{mm} .$ The focal length of the eyepiece for each telescope is 3.00 mm. Find the angular magnification of each telescope.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Objective-Eyepiece Relationship

The relationship between the focal lengths of the objective and the eyepiece is fundamental to the operation of telescopes. The objective gathers and focuses light from distant objects, while the eyepiece magnifies the resulting image. Their ratio provides the angular magnification of the telescope, making it a critical concept in designing and understanding such optical instruments.

Angular Magnification

Angular magnification refers to the factor by which an optical instrument, such as a telescope, increases the apparent angular size of an object. This concept is central in optical systems as it describes how much larger or closer an object appears when viewed through the instrument compared to the naked eye. The angular magnification is calculated by taking the ratio of the focal lengths of the objective lens (or mirror) and the eyepiece.

Focal Length

Focal length is the distance over which initially collimated light rays are brought to a focus by a lens or mirror. In telescopes, the focal length of the objective determines how much the incoming light is converged, and plays a pivotal role in the overall magnifying power of the system when combined with the eyepiece's focal length.
