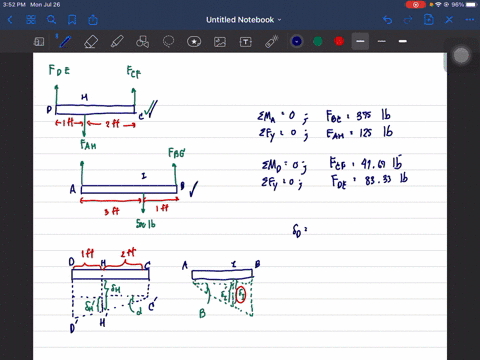

The load is supported by the four 304 stainless steel wires that are connected to the rigid members $A B$ and $D C$ Determine the angle of tilt of each member after the $500-1 b$ load is applied. The members were originally horizontal, and each wire has a cross-sectional area of 0.025 in $^{2}$

Key Concepts

Load Distribution

Load distribution is the process of determining how an applied external force is shared among multiple supporting elements. In systems with multiple wires or cables, understanding load distribution is critical because it affects the magnitude of tension in each support element, which in turn influences the resulting deformation or tilt of the structure.

Axial Stress and Strain

Axial stress is the force per unit area applied along a member and axial strain is the relative change in length due to that force. Calculating these quantities helps in understanding the amount of elongation experienced by the supporting elements when a load is applied, which is integral to determining the orientation or tilt of connected structures.

Rigid Body Rotation

Rigid body rotation involves the tilting or angular displacement of a member as a result of differential displacements at its supports. When supporting elements such as wires elongate by different amounts under load, the connected rigid member may rotate. Analyzing this rotation requires linking the elongation of the support elements to the angular deviation of the member from its original orientation.

Static Equilibrium

This concept ensures that the sum of forces and moments acting on a structure is zero. In problems involving loads and supports, establishing that the structure is in equilibrium is fundamental to determining how external forces, such as applied loads, distribute among the various support elements and cause overall deformation or rotation.

Elastic Deformation

Elastic deformation describes how materials change shape under load but return to their original form once the load is removed. It is calculated using Hooke’s law, where the deformation is directly related to the applied stress and the material’s Young’s modulus. In cases where tension elements, like wires or cables, are used as supports, their elongation under load can be used to determine the resulting movement or tilt of the connected rigid members.
