The magnetic flux threading a metal ring varies with time t...

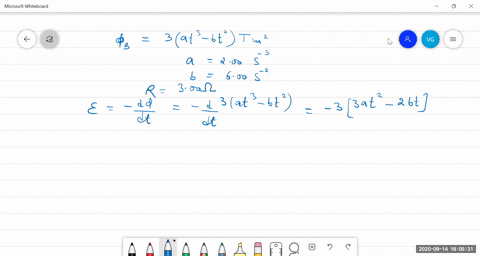

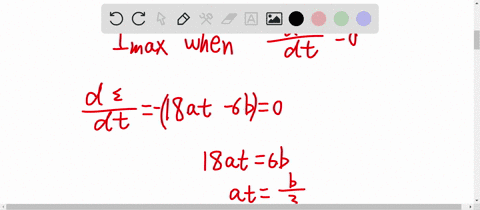

The magnetic flux threading a metal ring varies with time $t$ according to $\Phi_{B}=3\left(a t^{3}-b t^{2}\right) \mathrm{T} \cdot \mathrm{m}^{2}$, with $a=2.00 \mathrm{~s}^{-3}$ and $b=6.00 \mathrm{~s}^{-2}$. The resistance of the ring is $3.00 \Omega$. Determine the maximum current induced in the ring during the interval from $t=0$ to $t=2.00 \mathrm{~s}$.

Key Concepts

Calculus in Time-Dependent Physical Systems

In situations where physical quantities such as magnetic flux vary with time, calculus is used to compute the rate of change. Differentiation allows the determination of the exact moment when the induced emf (and consequently the induced current) reaches its maximum by finding the time where the rate of change of flux is greatest.

Ohm’s Law in Induced Circuits

Ohm’s Law relates the current flowing through a conductor to the voltage across it and the resistance within it. In the context of induced currents from electromagnetic induction, once the emf is calculated through Faraday’s Law, Ohm’s Law is used to determine the magnitude of the induced current by dividing the emf by the resistance of the circuit.

Faraday’s Law of Electromagnetic Induction

Faraday’s Law states that a change in magnetic flux through a closed circuit induces an electromotive force (emf) in that circuit. The magnitude of the induced emf is directly proportional to the rate at which the magnetic flux changes, making it a fundamental principle in understanding how electrical energy can be generated from varying magnetic fields.

Magnetic Flux

Magnetic flux is a measure of the quantity of the magnetic field passing through a given area. It is defined as the product of the magnetic field strength, the area it penetrates, and the cosine of the angle between the field lines and the perpendicular to the surface. This concept is central to electromagnetic induction, as changes in magnetic flux are what generate induced voltages in conductive loops.

Lenz’s Law

Lenz’s Law specifies the direction of the induced emf and current resulting from a change in magnetic flux. It states that the induced current will flow in such a direction that its magnetic field opposes the change in the original flux. This concept ensures the conservation of energy by preventing an endless amplification of the induced effects.
