Question
The magnetometer boom for a spacecraft consists of a large number of triangular-shaped units which spring into their deployed configuration upon release from the canister in which they were folded and packed prior to release. Write an expression for the force $F$ which the base of the canister must exert on the boom during its deployment in terms of the increasing length $x$ and its time derivatives. The mass of the boom per unit of deployed length is $\rho .$ Treat the supporting base on the spacecraft as a fixed platform and assume that the deployment takes place outside of any gravitational field. Neglect the dimension $b$ compared with $x$.
Step 1
The force equation for a system with variable mass is given by $\Sigma F = m \ddot{x} + \dot{m} v$, where $m$ is the mass of the system, $\ddot{x}$ is the acceleration, $\dot{m}$ is the rate of change of mass and $v$ is the velocity. Show more…
Show all steps
Your feedback will help us improve your experience
Vipender Yadav and 53 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The deployment mechanism for the spacecraft magnetometer boom of Prob. $5 / 88$ is shown again here. The driving link $O B$ has a constant clockwise angular velocity $\omega_{O B}$ of $0.5 \mathrm{rad} / \mathrm{sec}$ as it crosses the vertical position. Determine the angular acceleration $\alpha_{C A}$ of the boom for the position shown where $\tan \theta=4 / 3$

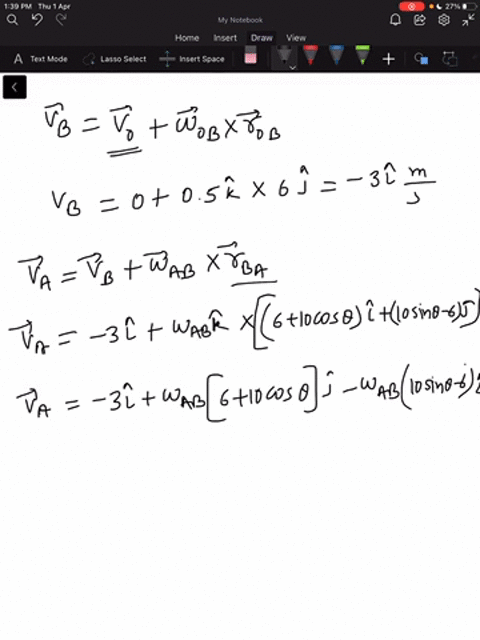

The elements of the mechanism for deployment of a spacecraft magnetometer boom are shown. Determine the angular velocity of the boom when the driving link $O B$ crosses the $y$ -axis with an angular velocity $\omega_{O B}=0.5 \mathrm{rad} / \mathrm{sec}$ if $\tan \theta=4 / 3$ at this instant.
Two small variable-thrust jets are actuated to keep the spacecraft angular velocity about the $z$ -axis constant at $\omega_{0}=1.25 \mathrm{rad} / \mathrm{s}$ as the two telescoping booms are extended from $r_{1}=1.2 \mathrm{m}$ to $r_{2}=4.5 \mathrm{m}$ at a constant rate over a 2 -min period. Determine the necessary thrust $T$ for each jet as a function of time where $t=0$ is the time when the telescoping action is begun. The small $10-\mathrm{kg}$ experiment modules at the ends of the booms may be treated as particles, and the mass of the rigid booms is negligible.
