The main waterline into a tall building has a pressure of 600 kPa at 5 -m elevation below ground

step 1 So let's start with the statement. Now it says that the main water line into a tall building has

The main waterline into a tall building has a pressure of...

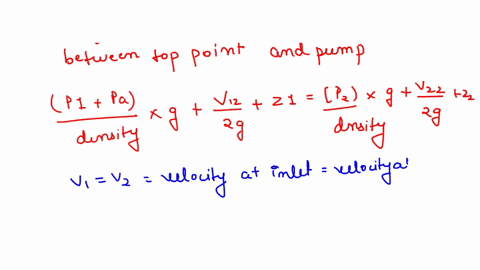

The main waterline into a tall building has a pressure of $600 \mathrm{kPa}$ at 5 -m elevation below ground level. The building is shown in Fig. P1.99. How much extra pressure does a pump need to add to ensure a waterline pressure of $200 \mathrm{kPa}$ at the top floor $150 \mathrm{~m}$ aboveground?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Hydrostatic Pressure

Hydrostatic pressure is the pressure exerted by a fluid at rest due to the weight of the fluid above a certain point. It is calculated using the equation ?P = ?g?z, where ? is the fluid density, g is the acceleration due to gravity, and ?z is the vertical height change. This concept is essential for understanding how pressure increases with depth (or decreases with elevation) in a fluid column.

Pressure Head

Pressure head represents the height of a fluid column that would produce a particular pressure due to gravity. By converting pressure differences into equivalent heights, it provides an intuitive way to assess the impact of elevation changes on fluid pressure. This is particularly useful when determining the additional pressure required to overcome elevation losses.

Pump Pressure Requirements in Fluid Systems

Understanding pump pressure requirements involves calculating the additional pressure a pump must provide to maintain a desired pressure at different elevations. This concept integrates the principles of hydrostatic pressure and pressure head to ensure that fluid systems, such as those in tall buildings, achieve the necessary pressure at the point of use regardless of vertical distance from the source.
