The measurement of the average coefficient of volume expansion βfor a liquid is complicated beca

step 1 Here is our YouTube. Please excuse my drawing. But anyway, yes. So we're going to look at the vo

The measurement of the average coefficient of volume...

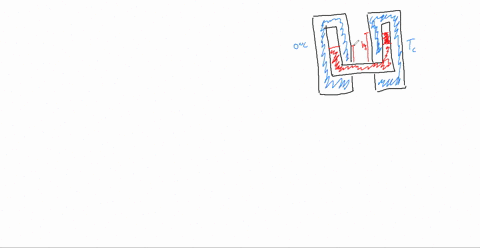

The measurement of the average coefficient of volume expansion $\beta$ for a liquid is complicated because the container also changes size with temperature. Figure Pl9. 50 shows a simple means for measuring $\beta$ despite the expansion of the container. With this apparatus, one arm of a U-tube is maintained at $0^{\circ} \mathrm{C}$ in a water-ice bath, and the other arm is maintained at a different temperature $T_{\mathrm{C}}$ in a constant-temperature bath. The connecting tube is horizontal. A difference in the length or diameter of the tube between the two arms of the U-tube has no effect on the pressure balance at the bottom of the tube because the pressure depends only on the depth of the liquid. Derive an expression for $\beta$ for the liquid in terms of $h_{0}, h_{t},$ and $T_{\mathrm{C}}$ .

Key Concepts

Hydrostatic Equilibrium

Hydrostatic equilibrium is the principle that, in a fluid at rest, the pressure at a given depth is determined solely by the weight of the fluid above that level. In the context of the U-tube apparatus, this means that the pressure at the bottom of both arms is the same regardless of differences in tube geometry or container expansion. This equilibrium is exploited in measurements by ensuring that the differential height observed is solely due to changes in the liquid’s volume.

Measurement Apparatus Design

The design of the measurement apparatus, such as the U-tube with arms maintained at different temperatures, is engineered to minimize the effects of container expansion. By isolating one part of the system at a fixed reference temperature and allowing the other to vary, the setup ensures that any change in the observed liquid level is predominantly due to the thermal expansion of the liquid itself. This clever design circumvents complications introduced by the simultaneous expansion of the containing vessel.

Coefficient of Volume Expansion

This concept refers to the quantitative measure of how much a substance’s volume changes per unit change in temperature. It is defined as the fractional change in volume per degree of temperature change and is a critical parameter for understanding thermal behavior in fluids. The coefficient provides insight into how a liquid expands or contracts, which is important in applications where temperature fluctuations occur.

Thermal Expansion

Thermal expansion is the general phenomenon in which materials change their dimensions in response to changes in temperature. In liquids, the increase in temperature generally produces an increase in volume due to the increased kinetic energy of the molecules. This principle is fundamental in physics and engineering, affecting the behavior of materials and the design of experiments and instruments that must account for such changes.
