The members of a truss are connected to the gusset plate. If...

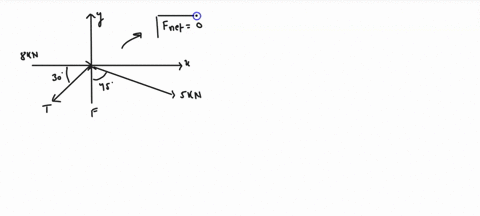

The members of a truss are connected to the gusset plate. If the forces are concurrent at point $O$, determine the magnitudes of $\mathbf{F}$ and $\mathbf{T}$ for equilibrium. Take $\theta=90^{\circ}$.

Key Concepts

Static Equilibrium

Static equilibrium is the condition in which a system, or a component of a system, is at rest, meaning that the sum of all forces and the sum of all moments acting on the system are zero. This notion underpins the analysis of structures like trusses, ensuring that all members remain stable under the applied loads.

Free-Body Diagrams

A free-body diagram is a simplified representation of a body and all the external forces and moments acting on it, isolated from its surroundings. This tool is essential in visualizing the force interactions at connections, such as at a gusset plate, and in applying the equilibrium equations accurately.

Force Resolution

Force resolution involves decomposing a force into its orthogonal components, usually along predefined axes, to simplify the analysis of the forces’ effects. This is particularly important in structural analysis when forces are applied at angles, as it allows one to use the equilibrium conditions effectively.

Concurrency of Forces

The concept of concurrent forces refers to a system where all the forces in a force system intersect at a single point. This property simplifies the problem since the moments produced by these forces about the point of concurrency vanish, reducing the complexity of the equilibrium equations.

Truss Analysis

Truss analysis is the evaluation of the forces within the members of a truss structure. It typically involves assuming pin connections where forces are transmitted as axial loads, making the analytical determination of member forces straightforward using methods like joint equilibrium and isolation of the connection point.
