The mobile depicted in Fig. 5-17 hangs in equilibrium. It...

Name: Problem 18, Chapter 5: Schaum's Outline of College Physics
Uploaded: 2021-09-05T09:45:08-08:00
Duration: 4 min 21 s
Channel: Paul Gabriel

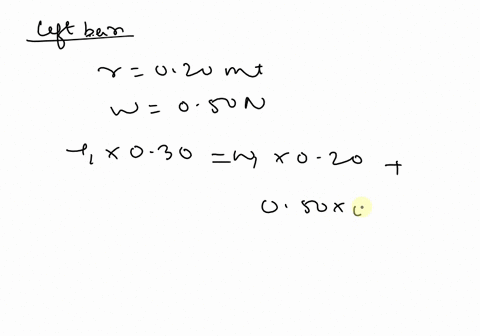

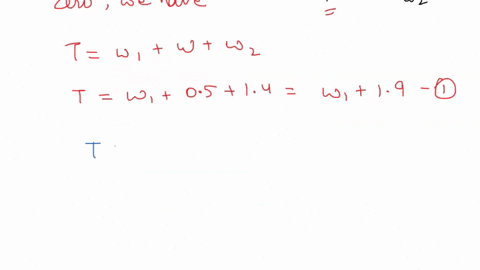

Description: The mobile depicted in Fig. 5-17 hangs in equilibrium. It consists of objects held by vertical strings. Object-3 weighs 1.40 N , while each of the identical uniform horizontal bars weighs 0.50 N . Find (a) the weights of objects-1 and -2 , and (b) the tension in the upper string.

The mobile depicted in Fig. 5-17 hangs in equilibrium. It consists of objects held by vertical strings. Object-3 weighs 1.40 N , while each of the identical uniform horizontal bars weighs 0.50 N . Find (a) the weights of objects-1 and -2 , and (b) the tension in the upper string.

Key Concepts

Tension in Cables

Tension refers to the pulling force transmitted through a string, cable, or similar connector. In systems like hanging mobiles, the tension in each string is determined by the sum of the weights or forces that the string supports, making it essential to account for these forces when applying the conditions of equilibrium.

Uniform Weight Distribution

Uniform bars have their weight evenly distributed along their length, which means that the bar’s weight can be considered as acting at its center of mass. This simplification is critical when calculating the torque produced by the bar’s weight in problems involving balance and rotational equilibrium.

Static Equilibrium

This concept involves ensuring that both the net force and the net torque acting on a system are zero, which is a necessary condition for the system to be at rest. In the context of a hanging mobile, analyzing static equilibrium allows one to set up balance equations for both vertical forces (weights and tensions) and rotational forces (torques) about pivot points.

Torque and Moment Arms

Torque is the rotational effect produced by a force acting at a distance from a pivot point. The effectiveness of the force in causing rotation depends on the magnitude of the force and its perpendicular distance (moment arm) from the pivot. In balancing mobiles, equating the torques produced by different weights helps determine unknown forces or distances.
