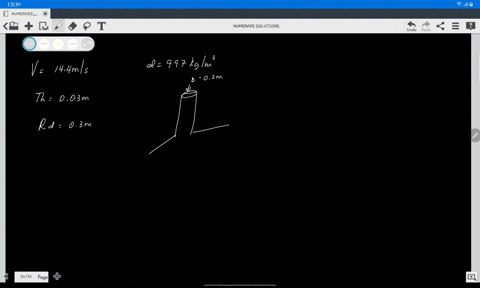

The nozzle shown discharges a sheet of water through a $180^{\circ}$ arc. The water speed is $15 \mathrm{m} / \mathrm{s}$ and the jet thickness is $30 \mathrm{mm}$ at a radial distance of $0.3 \mathrm{m}$ from the centerline of the supply pipe. Find (a) the volume flow rate of water in the jet sheet and (b) the $y$ component of force required to hold the nozzle in place.

Key Concepts

Momentum Flux

Momentum flux is the rate at which momentum is transported across a surface, and it plays a key role in the analysis of forces in fluid flows. When a fluid's velocity changes direction or magnitude, the associated momentum change exerts a force on boundaries or obstacles. This concept is essential for determining reaction forces and evaluating how fluid jets interact with their surroundings, based on the conservation of momentum.

Control Volume Analysis

Control volume analysis is a method used to apply the laws of conservation (mass, momentum, and energy) to a specified region in space. By applying these conservation principles within a control volume, engineers can analyze how fluid properties like mass and momentum enter and leave a particular region, predict forces acting on structures, and determine necessary conditions for system stability. This technique is widely employed in fluid dynamics to solve problems involving complex flow geometries such as jet deflections or nozzles.

Volume Flow Rate

This concept refers to the volume of fluid passing through a given cross?section per unit time. It is calculated by multiplying the cross-sectional area of the flow by the fluid velocity. In general, understanding the volume flow rate is crucial for characterizing the performance of fluid systems, ensuring mass conservation, and designing components like nozzles and pipes in various engineering applications.
