The overall length of a piccolo is 32.0 cm . The resonating air column vibrates as in a pipe ope

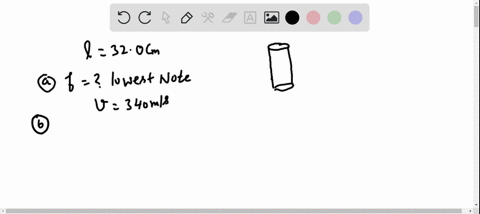

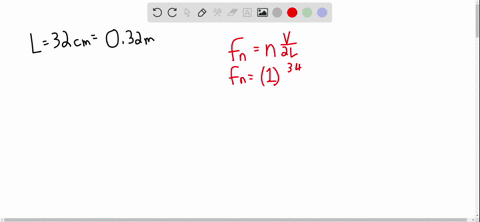

step 1 We have a piccolo of the length of 0 .32 meters. For part A of this problem, we need to find a f

The overall length of a piccolo is 32.0 cm . The resonating...

The overall length of a piccolo is $32.0 \mathrm{cm} .$ The resonating air column vibrates as in a pipe open at both ends. (a) Find the frequency of the lowest note a piccolo can sound, assuming the speed of sound in air is 340 $\mathrm{m} / \mathrm{s}$ . (b) Opening holes in the side effectively shortens the length of the resonant column. Assume the highest note a piccolo can sound is 4000 $\mathrm{Hz}$ . Find the distance between adjacent antinodes for this mode of vibration.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Open Pipe Resonance

In an open pipe, such as that in a piccolo, the air column has antinodes at both open ends. This creates standing wave patterns where the resonant frequencies depend on the length of the pipe and the boundary conditions. The mode of vibration and the position of nodes and antinodes are determined by these conditions, leading to specific harmonic frequencies.

Fundamental Frequency

The fundamental frequency is the lowest frequency produced by the resonator. For an open pipe, this frequency is given by f = v / (2L), where v is the speed of sound and L is the length of the pipe. This expression arises because the pipe supports a standing wave with a half-wavelength fitting into its length.

Standing Wave Antinode Spacing

In the context of standing waves, particularly within an open pipe, the distance between adjacent antinodes is equal to half of the wavelength (?/2). This relationship is crucial when analyzing the mode structure of vibrations and determining specific distances between points of maximum amplitude in the wave.
