The overall reaction in the lead storage battery is Pb(s)+PbO2(s)+2 H^+(a q)+2 HSO4^-(a q) ⟶Calc

step 1 In this problem, we're given the overall reaction for the lead storage battery, and we're given

The overall reaction in the lead storage battery is...

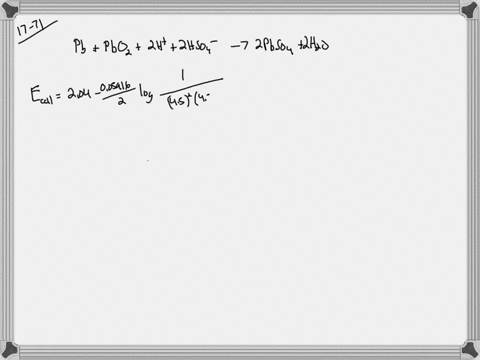

The overall reaction in the lead storage battery is $\mathrm{Pb}(s)+\mathrm{PbO}_{2}(s)+2 \mathrm{H}^{+}(a q)+2 \mathrm{HSO}_{4}^{-}(a q) \longrightarrow$ Calculate $\mathscr{8}$ at $25^{\circ} \mathrm{C}$ for this battery when $\left[\mathrm{H}_{2} \mathrm{SO}_{4}\right]=4.5 M$, that is, $\left[\mathrm{H}^{+}\right]=\left[\mathrm{HSO}_{4}^{-}\right]=4.5 M .$ At $25^{\circ} \mathrm{C}, \mathscr{b}^{\circ}=2.04 \mathrm{~V}$ for the lead storage battery.

The overall reaction in the lead storage battery is
$\mathrm{Pb}(s)+\mathrm{PbO}_{2}(s)+2 \mathrm{H}^{+}(a q)+2 \mathrm{HSO}_{4}^{-}(a q) \longrightarrow$
Calculate $\mathscr{8}$ at $25^{\circ} \mathrm{C}$ for this battery when $\left[\mathrm{H}_{2} \mathrm{SO}_{4}\right]=4.5 M$, that is, $\left[\mathrm{H}^{+}\right]=\left[\mathrm{HSO}_{4}^{-}\right]=4.5 M .$ At $25^{\circ} \mathrm{C}, \mathscr{b}^{\circ}=2.04 \mathrm{~V}$ for the lead
storage battery.

Key Concepts

Concentration Effects in Electrochemistry

Concentration effects in electrochemistry refer to how variations in the concentrations of ions in the electrolyte influence the cell potential. Changes in concentration alter the reaction quotient, which, through the Nernst equation, affect the measured voltage of an electrochemical cell. Understanding this relationship is crucial when analyzing battery performance under different operating conditions.

Nernst Equation

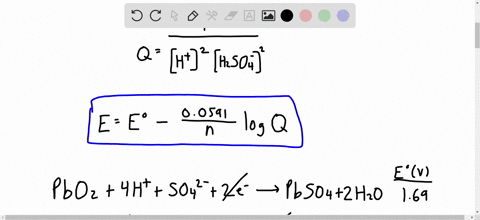

The Nernst equation is used to calculate the cell potential under non-standard conditions by accounting for the concentrations (or activities) of the reacting species. It relates the actual cell potential to the standard electrode potential, the temperature, the number of electrons transferred, and the reaction quotient, allowing prediction of cell behavior when concentrations deviate from standard conditions.

Reaction Quotient

The reaction quotient (Q) is a dimensionless number that expresses the ratio of the concentrations (or activities) of products to reactants at any point in time for a given reaction. In the context of electrochemistry, Q is used in the Nernst equation to adjust the cell potential based on current reaction conditions, revealing how far the reaction is from equilibrium.

Standard Electrode Potential

Standard electrode potentials indicate the intrinsic ability of a half-cell to gain or lose electrons under standard conditions (usually 1 M concentration, 1 atm pressure, and 25°C). They serve as benchmarks for comparing different redox reactions. The difference between the standard potentials of the cathode and anode provides the standard cell potential for the full electrochemical reaction.

Electrochemical Cells

Electrochemical cells are systems that convert chemical energy into electrical energy through redox (reduction-oxidation) reactions. They consist of two electrodes where oxidation occurs at the anode and reduction at the cathode, and an electrolyte that allows ion transport to balance charge. This concept is essential for understanding how batteries and other galvanic cells operate.
