The pendulum consists of a 15-kg solid ball and 6 -kg rod. If it is released from rest when θ1=9

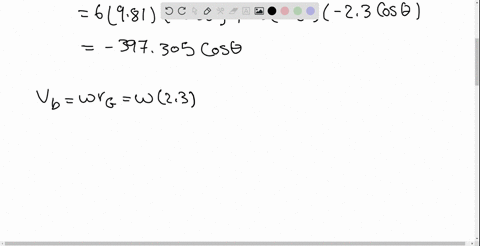

step 1 With question the mass moment of inertia i .a equal 1 over 3 times 6 times 2 power 2 plus 2 over

The pendulum consists of a 15-kg solid ball and 6 -kg rod....

The pendulum consists of a $15-\mathrm{kg}$ solid ball and 6 -kg rod. If it is released from rest when $\theta_{1}=90^{\circ}$, determine the angle $\theta_{2}$ after the ball strikes the wall, rebounds, and the pendulum swings up to the point of momentary rest. Take $e=0.6 .$

Key Concepts

Pendulum Dynamics

This concept encompasses the study of the motion of pendulums under the influence of gravity. It involves analyzing the forces, energy transformations, and geometric relationships that govern the pendulum’s swing. In dynamic problems, factors such as mass distribution, moment of inertia, and angular displacement are considered to understand how the pendulum’s motion evolves before and after events like collisions.

Coefficient of Restitution

This is a measure of the elasticity of a collision, defined as the ratio of the relative speed of separation to the relative speed of approach of two colliding bodies. In problems involving impacts, such as a pendulum colliding with a wall, the coefficient of restitution determines how much of the speed (and hence kinetic energy) is retained after the collision. Understanding this concept is essential for analyzing rebound velocities and their subsequent effect on the motion of the pendulum.

Energy Conservation

This concept involves the conversion between potential and kinetic energy. In pendulum problems, when the pendulum is released from a certain height, gravitational potential energy is transformed into kinetic energy as it swings down. Conversely, as the pendulum rises after a collision, its kinetic energy is converted back into potential energy until it momentarily comes to rest at its maximum height. Energy conservation principles are key for relating the speeds of the pendulum before and after impacts as well as to determine the amplitude (or angle) of the swing.
