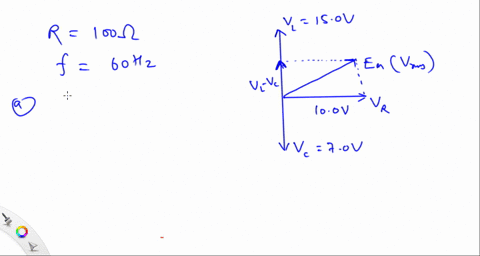

The phasor diagram for a particular RLC series circuit is shown in the figure. If the circuit ha

step 1 voltage amplitude across register is equal to current amplitude times resistance this gives us c

The phasor diagram for a particular RLC series circuit is...

Key Concepts

Frequency-dependent Reactance

The reactance of capacitors and inductors is dependent on the frequency of the applied AC signal. For capacitors, the reactance decreases with increasing frequency, while for inductors, the reactance increases with frequency. This frequency dependence is critical when designing circuits for specific operating conditions and is used to determine the values of capacitance and inductance needed to achieve desired circuit behaviors, such as resonance.

Complex Impedance

Complex impedance extends the concept of resistance to include the effects of capacitors and inductors in AC circuits by combining resistance (real part) and reactance (imaginary part) into a single complex number. This formulation allows the use of algebraic techniques to analyze AC circuit behavior, including the determination of current and voltage phasors using Ohm's Law in the frequency domain.

AC Ohm's Law

AC Ohm's Law generalizes the familiar DC Ohm's Law by relating the voltage and current phasors through the complex impedance of the circuit. Instead of a simple V=IR relationship, it uses the equation V=IZ, where Z is the complex impedance. This principle allows for the calculation of current amplitude and phase shifts introduced by reactive components, forming a fundamental tool in AC circuit analysis.

Phasor Diagrams

Phasor diagrams are graphical representations of the magnitude and phase relationships between sinusoidally varying quantities in AC circuits. They simplify the analysis of circuits by representing voltages and currents as rotating vectors (phasors) in the complex plane, where the length of each vector corresponds to the amplitude and its angle corresponds to the phase relative to a reference. This visualization is crucial in understanding how different circuit components interact under alternating current conditions.

RLC Series Circuit Analysis

RLC series circuits consist of a resistor, inductor, and capacitor connected in series, and their analysis involves calculating the combined effect of these components on the overall circuit behavior. Key to this analysis is understanding that the resistor contributes only to resistance while the inductor and capacitor contribute frequency-dependent reactances, which combine vectorially with the resistance to form the total impedance. This analysis is fundamental in predicting circuit responses such as current amplitude and resonant behavior.
