The plank has a weight of 30 lb, center of gravity at G, and it rests on the two sawhorses at A

step 1 in this question. You want us view on equals. T two lost. If we substitute, we'll have zero plus

The plank has a weight of 30 lb, center of gravity at G, and...

The plank has a weight of $30 \mathrm{lb}$, center of gravity at $G$, and it rests on the two sawhorses at $A$ and $B$. If the end $D$ is raised $2 \mathrm{ft}$ above the top of the sawhorses and is released from rest, determine how high end $C$ will rise from the top of the sawhorses after the plank falls so that it rotates clockwise about $A$, strikes and pivots on the sawhorse at $B$, and rotates clockwise off the sawhorse at $\bar{A}$.

Key Concepts

Torque and Lever Arms

Torque is the rotational equivalent of force and is calculated as the product of the force and its lever arm (the perpendicular distance from the axis of rotation). In the problem, torques due to the plank’s weight about the pivot points dictate the initiation and evolution of the rotational motion, impacting the conversion between potential and kinetic energy.

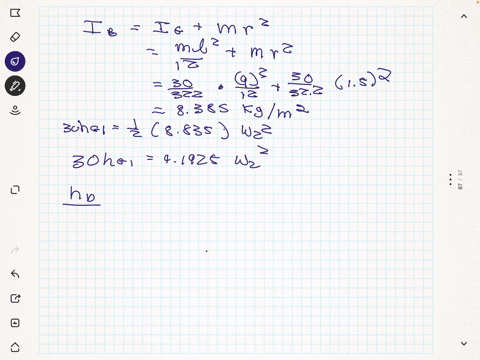

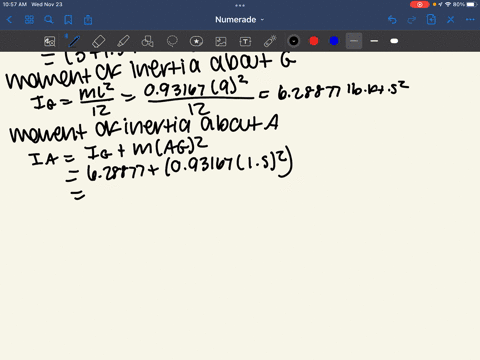

Moment of Inertia

The moment of inertia is a measure of an object's resistance to angular acceleration, depending on the mass distribution relative to the axis of rotation. For the rotating plank, knowing its moment of inertia about the pivot point is crucial in determining its angular speed and how the energy is distributed during the rotation.

Conservation of Mechanical Energy

This principle states that in the absence of energy losses due to non-conservative forces, the total mechanical energy of a system remains constant. In the context of a rotating plank, the gravitational potential energy lost as the elevated end descends is converted into rotational kinetic energy, which then determines how high the other end rises.

Rotational Dynamics

Rotational dynamics deals with the motion of bodies that rotate around an axis. It involves understanding how forces and torques influence rotational motion. Analyzing the plank’s rotation about different pivot points requires applying Newton’s laws for rotation, which relate torque, the moment of inertia, and angular acceleration.

Transcript

Please give Ace some feedback
