The plates of a spherical capacitor have radii 38.0 mm and 40.0 mm . (a) Calculate the capacitan

step 1 Okay, so for this problem, so for part A, part A, so we have a spherical capacitor, and the out

The plates of a spherical capacitor have radii 38.0 mm and...

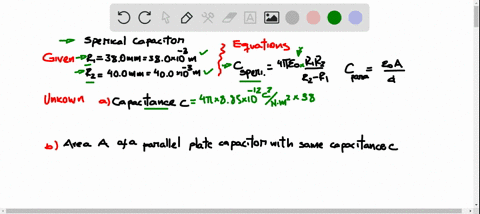

The plates of a spherical capacitor have radii 38.0 $\mathrm{mm}$ and
40.0 $\mathrm{mm}$ . (a) Calculate the capacitance. (b) What must be the plate
area of a parallel-plate capacitor with the same plate separation
and capacitance?

Key Concepts

Spherical Capacitor

This concept refers to a capacitor formed by two concentric spherical conducting shells. Its capacitance depends on the radii of the inner and outer shells, following the formula C = 4??? (r?r?)/(r? - r?), where r? and r? are the radii of the inner and outer spheres respectively. This geometry highlights how curvature and separation affect the ability to store electrical energy.

Parallel-Plate Capacitor

A parallel-plate capacitor is constructed using two flat, parallel conductive plates separated by a small distance. Its capacitance is given by the formula C = ??A/d, where A is the plate area, d is the separation between the plates, and ?? is the vacuum permittivity. This model is fundamental in understanding how area and distance influence energy storage in capacitors with uniform electric fields.

Capacitance

Capacitance is the property of a capacitor that quantifies its ability to store electric charge per unit voltage, measured in farads (F). It is determined by the physical characteristics of the capacitor such as the geometry and the medium between its conductors. Understanding capacitance is central to the design and analysis of electrical circuits and systems.

Permittivity of Free Space (??)

The permittivity of free space, denoted by ??, is a fundamental physical constant that represents the capability of the vacuum to permit electric field lines. It appears in the formulas for both spherical and parallel-plate capacitors, playing a crucial role in determining the capacitance. Its value is approximately 8.854 x 10?¹² F/m, and it is essential in linking the physical geometry of a capacitor to its electrical properties.
