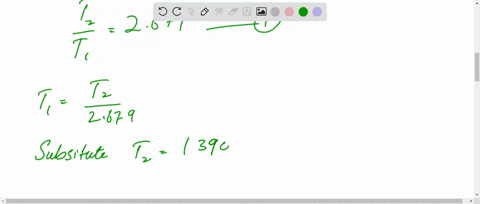

The pressure upstream of a normal shock wave is 1 atm. The pressure and temperature downstream of the wave are $10.33$ atm and $1390{ }^{\circ} \mathrm{R}$, respectively. Calculate the Mach number and temperature upstream of the wave and the total temperature and total pressure downstream of the wave.

Key Concepts

Compressible Flow Relations Across Shock Waves

The analysis of compressible flow across a normal shock wave is governed by the conservation of mass, momentum, and energy, along with the equation of state. These relationships provide formulas to link the upstream and downstream properties, allowing one to calculate quantities such as the upstream Mach number, static temperature, and the total pressure and temperature after the shock. Understanding these relations is crucial for applications involving high-speed aerodynamics and propulsion.

Normal Shock Waves

Normal shock waves are abrupt, nearly discontinuous changes in the flow properties (such as pressure, temperature, and density) that occur when a supersonic flow is decelerated to subsonic speeds. These shock structures are oriented perpendicular to the flow direction and are characterized by strong irreversibility and energy loss. Their analysis involves using conservation laws across the shock to relate upstream and downstream conditions.

Mach Number

The Mach number is a dimensionless quantity defined as the ratio of the flow velocity to the speed of sound in the medium. It determines the compressibility effects in the flow and categorizes the regime as subsonic, transonic, or supersonic. In the context of normal shock waves, the upstream Mach number plays a critical role in determining the property changes across the shock.

Static and Total (Stagnation) Conditions

Static conditions refer to the properties of the flow (such as pressure and temperature) as measured in the moving fluid, while total or stagnation conditions represent the state variables that the fluid would attain if it were brought to rest isentropically. The relationships between static and total conditions are fundamental in compressible flow analysis, particularly for high-speed flows where shock waves can cause irreversible changes that affect these values.
