The product of inertia for an area about inclined axes is...

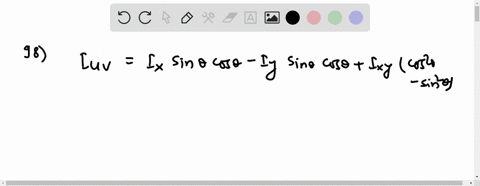

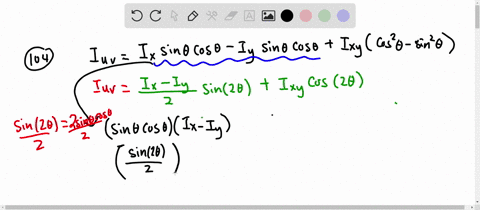

The product of inertia for an area about inclined axes is given by the formula $$ I_{u v}=I_x \sin \theta \cos \theta-I_y \sin \theta \cos \theta+I_{x y}\left(\cos ^2 \theta-\sin ^2 \theta\right) $$ Show that this is equivalent to $$ I_{u v}=\frac{I_x-I_y}{2} \sin (2 \theta)+I_{x y} \cos (2 \theta) $$

The product of inertia for an area about inclined axes is given by the formula
$$
I_{u v}=I_x \sin \theta \cos \theta-I_y \sin \theta \cos \theta+I_{x y}\left(\cos ^2 \theta-\sin ^2 \theta\right)
$$
Show that this is equivalent to
$$
I_{u v}=\frac{I_x-I_y}{2} \sin (2 \theta)+I_{x y} \cos (2 \theta)
$$

Key Concepts

Product of Inertia

This concept refers to a measure used in structural mechanics and dynamics that quantifies the distribution of an area (or mass in the case of mass moment of inertia) relative to two perpendicular axes. It is especially important in calculations involving rotated axes, where the conventional principal axes are not aligned with the coordinate axes, affecting the resistance of the shape to bending or twisting.

Area Moments of Inertia

Also known as second moments of area, these quantities measure the resistance of a shape's area to bending about an axis. In the context of the product of inertia, the individual moments about the coordinate axes (I_x and I_y) as well as the cross moment I_xy are used to describe how the area is distributed relative to those axes, affecting the overall inertia when the axes are rotated.

Transformation of Inertia Terms

This concept involves the mathematical process of relating the moments and product of inertia when the coordinate axes are rotated by an arbitrary angle. It is crucial in both mechanical and structural engineering as it provides the means to compute the new moments of inertia or product of inertia for rotated axes using known values from the original coordinate system.

Trigonometric Double Angle Identities

The double angle identities, such as sin(2?) = 2 sin? cos? and cos(2?) = cos²? - sin²?, are fundamental trigonometric formulas that simplify the expressions encountered during the rotation of axes. In the problem, these identities are used to transform a more complex expression into a simpler, equivalent form that clearly reveals the dependency on the rotation angle.
