The R C low-pass filter shown in Active Figure 33.23 a has a resistance R=90.0 Ωand a capacitanc

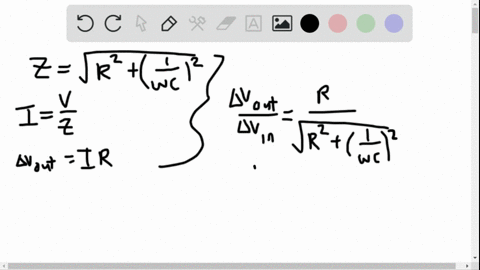

step 1 So now we're going to need to use our results from problem 46. And I think that my result from p

The R C low-pass filter shown in Active Figure 33.23 a has a...

The $R C$ low-pass filter shown in Active Figure 33.23 $\mathrm{a}$ has a resistance $R=90.0 \Omega$ and a capacitance $C=8.00 \mathrm{nF}$ . Calculate the ratio $\left(\Delta v_{\text { out }} / \Delta v_{\text { in }}\right)$ for an input frequency of (a) 600 $\mathrm{Hz}$ and $(\mathrm{b}) 600 \mathrm{kHz}$ . You may use the result of Problem $46 .$

Key Concepts

RC Low-Pass Filter

An RC low-pass filter is a basic circuit that uses a resistor and a capacitor to permit low-frequency signals to pass through while attenuating high-frequency signals. This filter design is a fundamental concept in electronics and signal processing, providing a simple way to limit unwanted noise or high-frequency content in a signal.

Transfer Function

The transfer function of a filter expresses the output-to-input ratio as a function of frequency. For an RC low-pass filter, the transfer function is derived from the impedances of the resistor and the capacitor, and it quantifies how the amplitude and phase of a signal are altered by the filter over a range of frequencies.

Frequency Response

Frequency response refers to how a circuit’s output amplitude or phase changes with variation in the frequency of the input signal. It is key in understanding filter behavior, indicating the cutoff frequency and the rate at which the output signal is attenuated beyond this point.

Angular Frequency

Angular frequency, denoted by ?, is defined as 2? times the linear frequency and is used in the analysis of AC signals. It is essential for converting between time-domain and frequency-domain representations, especially in the evaluation of the reactance of capacitors and inductors.

Capacitive Reactance

Capacitive reactance is the impedance offered by a capacitor to AC signals, calculated as the reciprocal of the product of angular frequency and capacitance. It plays a critical role in determining the frequency-dependent behavior of RC circuits, influencing the overall transfer function of a low-pass filter.
