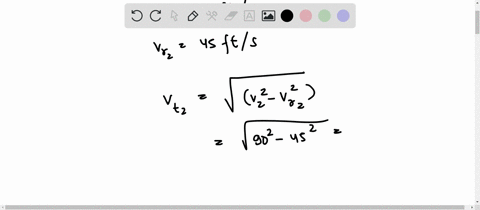

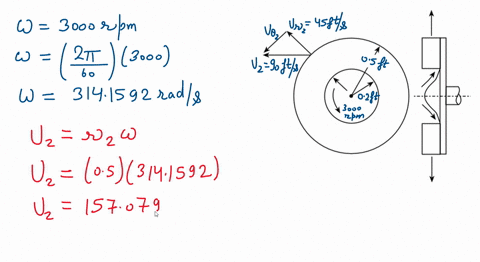

The radial component of velocity of water leaving the centrifugal pump sketched in Fig. $\mathrm{P} 12.7$ is $45 \mathrm{ft} / \mathrm{s}$. The magritude of the absolute velocity at the pump exit is $90 \mathrm{ft} / \mathrm{s}$, The fluid enters the pump rotor radially. Calculate the shaft work required per unit mass flowing through the pump.

Key Concepts

Centrifugal Pump Operation

This concept deals with the fundamental principles of how centrifugal pumps impart energy to a fluid by converting mechanical energy from the rotating impeller into kinetic energy. Understanding the general operation of a centrifugal pump is crucial because it explains how energy is transferred from the pump shaft to the fluid, resulting in increased fluid velocity and pressure.

Euler’s Pump Equation

Euler’s Pump Equation is a cornerstone in turbomachinery that relates the work done on the fluid per unit mass to the change in the product of the blade speed and the tangential component of the fluid velocity. This equation provides a direct link between the kinematics of the pump (via velocity components) and the energy imparted to the fluid, making it essential in calculating the specific work in devices like centrifugal pumps.

Velocity Triangles

The concept of velocity triangles is used to graphically represent the relationship between the absolute velocity, the blade (or peripheral) velocity, and the relative velocity. This geometric interpretation allows for the decomposition of the fluid's velocity into its radial and tangential components, which is vital for analyzing the energy transfer processes and determining the performance of a pump.

Angular Momentum Transfer

Angular momentum transfer in turbomachinery refers to the change in angular momentum of the fluid resulting from the pump’s rotation. This transfer is directly related to the tangential component of the velocity and plays a central role in the calculation of the work done by the pump. It forms the physical basis for the application of Euler’s equation in analyzing the energy conversion process in centrifugal pumps.
