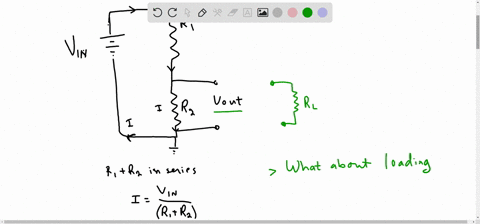

The rather simple circuit shown below is known as a voltage divider. The symbol consisting of three horizontal lines is represents "ground" and can be defined as the point where the potential is zero. The voltage divider is widely used in circuits and a single voltage source can be used to provide reduced voltage to a load resistor as shown in the second part of the figure. (a) What is the output voltage $V_{\text {out }}$ of circuit (a) in terms of $R_{1}, R_{2},$ and $V_{\text {in }} ?$ (b) What is the output voltage $V_{\text {out }}$ of circuit (b) in terms of $R_{1}, R_{2}, R_{L},$ and $V_{\text {in }} ?$

Key Concepts

Voltage Divider

A voltage divider is a basic circuit that reduces an input voltage to a lower output voltage by using two resistors connected in series. The output voltage is determined by the ratio of one resistor (typically the resistor across which the output is taken) to the sum of both resistors. This principle is fundamental in circuit analysis and is often used to create reference voltages or to adjust signal levels in electronic devices.

Load Impact on Voltage Divider

When a load resistor is connected to the output of a voltage divider, it effectively forms a parallel connection with the resistor across which the output is taken. This parallel combination changes the effective resistance seen by the circuit, which in turn alters the output voltage. Understanding the load effect is critical because it demonstrates that the output voltage of an unloaded divider may differ from that of a loaded divider, highlighting the importance of considering the interaction between circuit elements.

Parallel Resistor Combination

In circuits where two resistors share the same two nodes, they are connected in parallel, and the effective resistance is given by the reciprocal of the sum of the reciprocals of the individual resistances. This concept is crucial for analyzing circuits with a load connected to a voltage divider, as the load resistor and one of the divider's resistors together form a parallel network that impacts the overall voltage drop in the circuit.
