The relay regulates voltage and current. Determine the force...

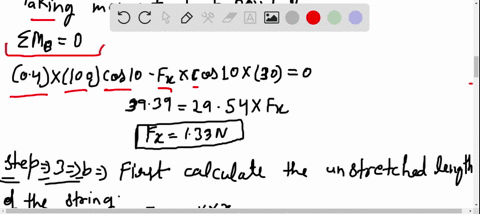

The relay regulates voltage and current. Determine the force in the spring $C D,$ which has a stiffness of $k=120 \mathrm{N} / \mathrm{m}$ so that it will allow the armature to make contact at $A$ in figure (a) with a vertical force of $0.4 \mathrm{N}$. Also, determine the force in the spring when the coil is energized and attracts the armature to $E,$ figure (b), thereby breaking contact at $A$.

Key Concepts

Hooke's Law

Hooke's Law explains the linear relationship between the force exerted by a spring and its displacement, stating that the force is equal to the product of the spring constant (stiffness) and the displacement from its equilibrium position. This principle is fundamental for analyzing how much force a spring exerts or needs for a certain deflection.

Spring Stiffness

Spring stiffness, quantified by the spring constant (k), is a measure of a spring's resistance to deformation. It is expressed in units such as N/m and defines how much force is needed to compress or extend the spring by a unit distance, making it essential for calculations involving spring forces and deflections.

Mechanical Equilibrium

Mechanical equilibrium refers to the state where all the forces acting on a system balance each other, resulting in no net movement. In electromechanical devices, such as relays, achieving equilibrium between the restoring force of a spring and external forces is crucial for maintaining proper contact or separation of components.

Relay Operation

Relay operation involves an electromechanical mechanism where an electromagnetic coil and a spring work together to control the movement of an armature and its electrical contacts. The balance between electromagnetic forces (when the coil is energized) and mechanical forces (from the spring) determines the switching behavior, ensuring reliable connection or disconnection.
