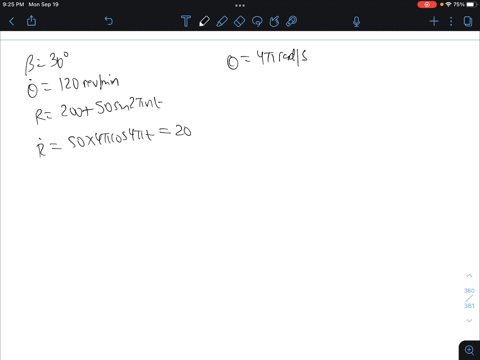

The rod $O A$ is held at the constant angle $\beta=30^{\circ}$ while it rotates about the vertical with a constant angular rate $\dot{\theta}=120$ rev/min. Simultaneously, the sliding ball $P$ oscillates along the rod with its distance in millimeters from the fixed pivot $O$ given by $R=200+50 \sin 2 \pi n t,$ where the frequency $n$ of oscillation along the rod is a constant 2 cycles per second and where $t$ is the time in seconds. Calculate the magnitude of the acceleration of $P$ for an instant when its velocity along the rod from 0 toward $A$ is a maximum.

Key Concepts

Angular Kinematics

Angular kinematics concerns the description of rotational motion in terms of angular position, angular velocity, and angular acceleration. In problems where an object rotates at a constant rate about an axis, concepts such as constant angular velocity and the resulting centripetal effects are central to understanding the overall motion.

Motion in Polar Coordinates

Using polar coordinates allows for separating the motion of a particle into radial and angular components. In such an analysis, the particle’s position is expressed as a function of a radial distance and an angle, which makes it easier to derive expressions for velocity and acceleration in each direction.

Oscillatory Motion

Oscillatory motion refers to movements that repeat periodically. When a particle’s radial position varies sinusoidally, it introduces additional components of velocity and acceleration that are derived from differentiating the sinusoidal function with respect to time.

Acceleration Decomposition

Decomposing acceleration into its components is crucial in multi-dimensional kinematics. For a particle moving in a rotating system with radial oscillations, the total acceleration is found by combining the radial acceleration (including contributions from oscillatory motion and its second time derivative), the tangential (or Coriolis) acceleration, and the centripetal acceleration resulting from the angular motion.

Differentiation in Kinematics

Time differentiation is used to obtain velocities and accelerations from position functions. In this context, differentiating the radial position function, as well as considering the constant angular velocity, yields the necessary terms to compute the particle’s instantaneous acceleration components.
