The rotating element in a mixing chamber is given a periodic...

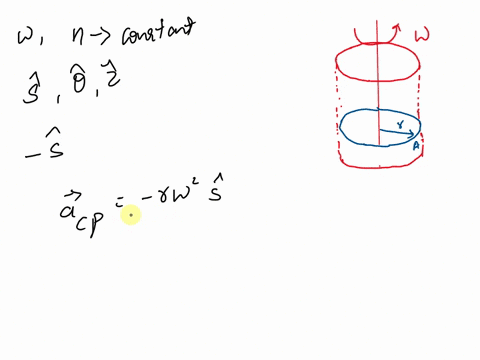

The rotating element in a mixing chamber is given a periodic axial movement $z=z_{0} \sin 2 \pi n t$ while it is rotating at the constant angular velocity $\dot{\theta}=\omega$ Determine the expression for the maximum magnitude of the acceleration of a point $A$ on the rim of radius $r .$ The frequency $n$ of vertical oscillation is constant.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Simple Harmonic Motion

Simple harmonic motion (SHM) describes oscillatory motion where the restoring force is proportional to displacement, resulting in a sinusoidal displacement function. In this context, the axial movement given by z = z? sin(2?nt) represents SHM, where the maximum acceleration in the axial direction is related to the square of the angular frequency of oscillation (2?n), leading to a maximum magnitude of (2?n)²z?.

Uniform Circular Motion

Uniform circular motion involves a point moving at constant speed along a circular path, which results in a centripetal acceleration directed toward the center of the circle. For a point on the rim at radius r rotating at a constant angular velocity ?, the centripetal acceleration has a magnitude of r?² and is always perpendicular to the direction of the linear velocity.

Vector Addition of Perpendicular Accelerations

When a point undergoes two independent motions such as vertical simple harmonic oscillation and horizontal uniform circular motion, the total acceleration is the vector sum of these two perpendicular accelerations. The maximum overall acceleration magnitude is determined by combining the centripetal acceleration (r?²) and the maximum axial acceleration ((2?n)²z?) using the Pythagorean theorem.
