The shaft is supported by a smooth thrust bearing at B and a journal bearing at C . Determine th

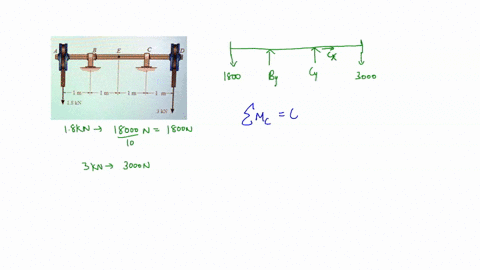

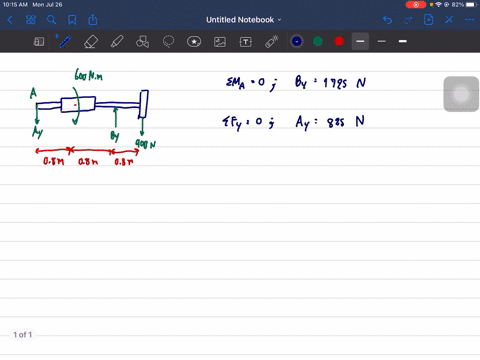

step 1 Hi friends, as soon in the figure, there is a soft supported by smooth thrust wearing at B and g

The shaft is supported by a smooth thrust bearing at B and a...

Key Concepts

Internal Force and Moment Resultants

These are the net forces and moments acting across a cut section of a structure. They typically include axial forces (resulting from direct tension or compression), shear forces (arising from transverse loads), bending moments (due to applied moments or uneven force distributions), and torsional moments if applicable. Identifying these resultants is central to assessing the structural integrity and behavior of the shaft under applied loads.

Bearing Reaction Forces

Bearing supports provide external forces and moments that affect the internal load distribution within the structure. A smooth thrust bearing and a journal bearing each impose specific constraints and reactions depending on their design and the loads they carry. Understanding how these reactions influence the internal forces is critical when computing the net loading across a given cross-section.

Equilibrium Equations

The analysis of internal loadings relies on the application of static equilibrium principles, where the sum of forces in all directions and the sum of moments about any point must be zero. In the context of determining internal forces and moments at a cross-section, the equilibrium equations help relate external reactions (such as those from bearings) to the internal shear forces, bending moments, axial forces, and possibly torsional moments present at the section.

Free-Body Diagram Analysis

This concept involves isolating a section of the structure (in this case, the shaft up to section E) and representing all external forces, reactions, and moments acting on that segment. By 'cutting' the structure at section E, one can apply equilibrium equations to the isolated part to determine the internal forces and moments transmitted across the cross?section. It is a foundational technique in structural analysis and mechanics of materials.
