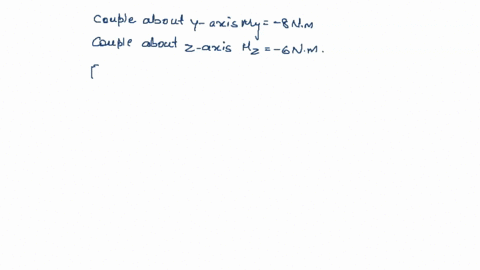

The shafts of an angle drive are acted upon by the two couples hown. Replace the two couples wit

The shafts of an angle drive are acted upon by the two...

Key Concepts

Axis of Rotation

The axis of rotation is the line about which the effect of a couple is concentrated, determined by the direction of the resulting moment vector. Understanding the orientation of this axis is crucial when analyzing the rotational behavior of a system.

Vector Addition in Mechanics

When dealing with multiple forces and moments, vector addition is used to sum the effects of individual couples. This approach, utilizing the properties of vectors, enables the calculation of the overall magnitude and direction of the equivalent moment from several contributions.

Couple

A couple is a pair of equal and opposite forces whose lines of action are parallel but do not coincide, resulting in a pure rotational effect without a net force. This is fundamental in statics and dynamics to describe moments that cause turning in a body.

Equivalent Couple

The idea of replacing multiple couples with a single equivalent couple is used to simplify the analysis of rotational effects on a body. This equivalent couple has the same net moment and direction as the combined effect of the original couples, allowing for an easier assessment of the rotational dynamics.

Moment

A moment, or torque, measures the tendency of a force to induce rotation about an axis. It is calculated as the product of the force and the perpendicular distance from the axis to the line of action of the force and is represented as a vector that indicates both magnitude and direction.

Transcript

00:01 Problem 3 .80.

00:02 In this problem we have to replace these couples that are acting on this system by a single equivalent couple and find the magnitude and direction of that equivalent couple system.

00:15 So first of all, what we will do that we will try to resolve all these forces, all these couples into its component couples and then write those couples into its vector form and then we will.

00:30 Will find the direction.

00:32 Let's say that this is moment a, this is moment b and this is moment c.

00:40 Now in the problem it is given that moment a and moment c are acting in yz plane so their components will be along y axis and z axis.

00:50 So moment a will have a component along z axis and it will be 900 cost 20 in positive z direction and and it will have another component along z -axis and that will be 900 sine 20 and that will be along positive y -axis.

01:10 So we can write moment a in vector form as 900 cost 20 and this is positive j directions so k -cap and other component is 900 sign 20 and it is along positive y xx so jcap now moment b is completely along x xx so we need not to resolve this this moment so we can write it as moment as it is as moment b is equals to 840 since it is a negative x direction so minus i cap now moment due to a moment uh due to a moment c that is mc we can write it as it will have a component along positive z direction and another component along negative y direction.

02:08 So positive z direction component will be 1200 cost 20 k cap and negative y component will be minus 1200 sine 20 jcap.

02:24 So total moment acting on the system can be calculated by adding these moments...
