The shock wave off the cockpit of the FA 18 in Fig. 17-24...

The shock wave off the cockpit of the FA 18 in Fig. $17-24$ has an angle of about $60^{\circ} .$ The airplane was traveling at about
1350 $\mathrm{km} / \mathrm{h}$ when the photograph was taken. Approximately what
was the speed of sound at the airplane's altitude?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Mach Number

The Mach number is a dimensionless quantity defined as the ratio of an object’s speed to the speed of sound in the surrounding medium. It is a critical parameter in aerodynamics and is used to classify flow regimes such as subsonic, transonic, supersonic, and hypersonic. Understanding the Mach number helps in analyzing the behavior of shock waves and aerodynamic forces on bodies moving at high speeds.

Mach Angle

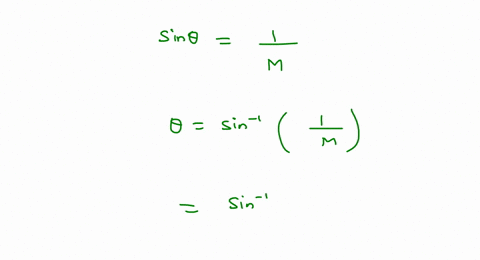

The Mach angle is the half-angle of the cone formed by the shock wave emanating from an object traveling at supersonic speeds. It is determined by the relationship sin(?) = (speed of sound)/(object's speed). This concept is essential in the study of supersonic flows as it directly relates the geometry of the shock wave to the Mach number of the object.

Speed of Sound

The speed of sound is the rate at which pressure disturbances (or sound waves) propagate through a medium. In aerodynamics, it is a fundamental property that depends on factors such as temperature, medium composition, and altitude. The speed of sound sets the benchmark for determining whether an aircraft is traveling at subsonic or supersonic speeds, and it plays a key role in the formation of shock waves.
