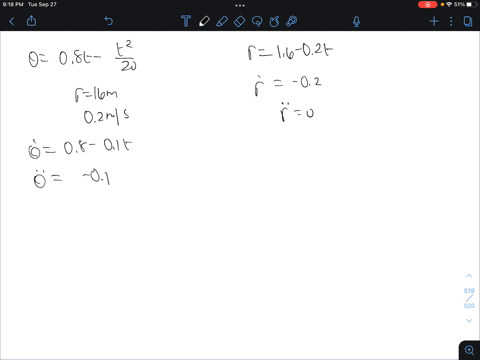

The slider $P$ can be moved inward by means of the string $S,$ while the slotted arm rotates about point O. The angular position of the arm is given by $\theta=0.8 t-\frac{t^{2}}{20},$ where $\theta$ is in radians and $t$ is in seconds. The slider is at $r=1.6 \mathrm{m}$ when $t=0$ and thereafter is drawn inward at the constant rate of $0.2 \mathrm{m} / \mathrm{s} .$ Determine the magnitude and direction (expressed by the angle $\alpha$ relative to the $x$ -axis) of the velocity and acceleration of the slider when $t=4 \mathrm{s}$

The slider $P$ can be moved inward by means of the string $S,$ while the slotted arm rotates about point
O. The angular position of the arm is given by $\theta=0.8 t-\frac{t^{2}}{20},$ where $\theta$ is in radians and $t$ is in seconds. The slider is at $r=1.6 \mathrm{m}$ when $t=0$ and thereafter is drawn inward at the constant rate of $0.2 \mathrm{m} / \mathrm{s} .$ Determine the magnitude and direction (expressed by the angle $\alpha$ relative to the $x$ -axis) of the velocity and acceleration of the slider when $t=4 \mathrm{s}$

Key Concepts

Polar Coordinates

Polar coordinates are a system used to describe the position of a point in a plane using a radial distance and an angular coordinate rather than using Cartesian x and y coordinates. This framework is particularly useful when analyzing motion that involves rotation or radial motion, as it naturally aligns with the dynamics of problems that have central symmetry or involve circular paths.

Rotational Kinematics

Rotational kinematics involves the study of angular motion and includes the angular position, angular velocity, and angular acceleration of a rotating body. By relating time to the angular displacement, velocities and accelerations can be computed through time differentiation, which is analogous to linear motion but expressed in terms of angles rather than linear distances.

Time Differentiation

Time differentiation is a mathematical process used to find the rate at which a quantity changes with respect to time. In kinematics, the first derivative of position with respect to time yields velocity, while the second derivative gives acceleration. This concept is essential for determining instantaneous velocities and accelerations from given position-time relations.

Vector Decomposition

Vector decomposition involves breaking down a vector into its components along specified directions, typically along mutually perpendicular axes. In the context of polar or rotational motion, it is often necessary to decompose velocity and acceleration vectors into radial and tangential (or angular) components, or to transform them into Cartesian coordinates to fully describe the magnitude and direction of these vectors.
