The solid aluminum shaft has a diameter of 50 mm and an allowable shear stress of τallow =60 MPa

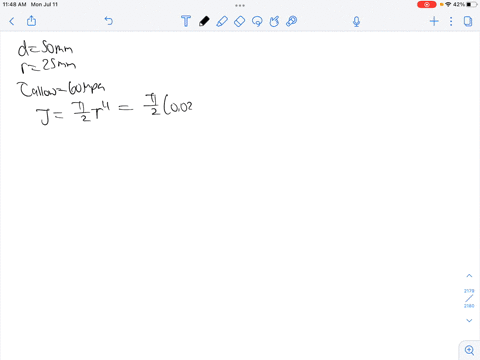

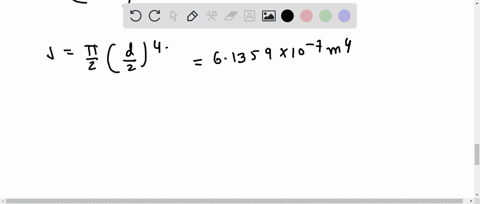

step 1 So let's solve this question. So in this question we have, in this question we have, we have fir

The solid aluminum shaft has a diameter of 50 mm and an...

The solid aluminum shaft has a diameter of $50 \mathrm{mm}$ and an allowable shear stress of $\tau_{\text {allow }}=60$ MPa. Determine the largest torque $T_{1}$ that can be applied to the shaft if it is also subjected to the other torsional loadings. It is required that $\mathbf{T}_{1}$ act in the direction shown. Also, determine the maximum shear stress within regions $C D$ and $D E$

Key Concepts

Superposition Principle in Torsion

When a shaft is subjected to multiple torsional loads simultaneously, the superposition principle allows for the individual effects of each loading to be combined to assess the overall stress state. This concept is fundamental in complex loading situations, ensuring that all contributing factors are considered when determining the maximum shear stress and the permissible applied torques.

Polar Moment of Inertia

The polar moment of inertia is a property of a cross-sectional area that measures its resistance to torsional deformation. It plays a critical role in determining the shear stress distribution in the shaft when subjected to torque, as it appears in the formula linking torque, shear stress, and the geometry of the shaft.

Torsion in Circular Shafts

This concept covers the analysis of how a circular shaft behaves when subjected to twisting loads (torque). It involves understanding how the applied torque produces shear stresses across the cross-section of the shaft, with the maximum shear stress occurring at the surface. This is essential for designing shafts that can safely transmit torque without yielding or failing.

Allowable Shear Stress

Allowable shear stress is the maximum shear stress a material can endure before failure or permanent deformation. In design, engineers compare calculated shear stresses to this allowable limit to ensure the structural integrity and safety of the component under expected loading conditions.
